#include <stdint.h>

Include dependency graph for render_engine.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	point

struct	vector

struct	camera

struct	triangle

struct	world

struct	framebuffer

enum	pixel_color { Black = 40, Red, Green, Yellow, Blue, Magenta, Cyan, White }

typedef float	rounding_t

typedef struct point	point_t

typedef struct vector	vector_t

typedef struct camera	camera_t

typedef struct triangle	triangle_t

typedef struct world	world_t

typedef struct framebuffer	framebuffer_t

void	Render_Engine_RenderFrame (world_t world, camera_t camera, framebuffer_t *framebuffer)
	Render a frame. More...

void	Render_Engine_DisplayFrame (uint8_t channel, framebuffer_t *framebuffer)
	Display a frame. More...

Detailed Description

Author: Nate Hoffman

Version: 1

Created on March 21, 2019

Use this module to perform 3D rendering on the processor. Processing can take quite some time and is blocking. Little error checking is performed yet.

Calculations may not be 100% accurate, but is sufficient for the character terminal based output. Normal usage is:

Render_Engine_RenderFrame() to populate a framebuffer with the image
Render_Engine_DisplayFrame() to send a framebuffer out over a UART channel

Example

The following code can be used to display a pyramid onscreen. The camera rotates around it to show all the sides. This example can easily be modified to rotate the camera inside the pyramid.

#include "project_settings.h"
#include "subsystem.h"
#include "task.h"
#include "uart.h"
#include "terminal.h"
#include "hal_general.h"
#include <math.h>
#include "render_engine.h"
int main() {
    DisableInterrupts();
    UART_Init(SUBSYSTEM_UART);
    UART_ReconfigureBaud(SUBSYSTEM_UART, 115200);
    EnableInterrupts();

    Terminal_HideCursor(SUBSYSTEM_UART);
    Terminal_SetColor(SUBSYSTEM_UART, BackgroundBlack);
    Terminal_ClearScreen(SUBSYSTEM_UART);

    // Test render engine
    world_t worldA;
    camera_t cam;
    cam.fovHorizontal = 100;
    cam.fovVertical = 75;
    cam.location.x = 0;
    cam.location.y = 0;
    cam.location.z = 5;
    cam.rotation.x = 0;
    cam.rotation.y = -50;
    cam.rotation.z = 0;

    framebuffer_t buf;
    buf.width = 80;
    buf.height = 24;
    uint8_t bufAlloc[buf.width * buf.height];
    buf.buffer = bufAlloc;

    worldA.numTriangles = 4;
    worldA.backgroundColor = Blue;
    vector_t backTop = {0, 0, 3};
    vector_t back1 = {-1, -1, 0};
    vector_t back2 = {-1, 1, 0};
    triangle_t back = {backTop, back1, back2, Red};
    vector_t rightTop = {0, 0, 3};
    vector_t right1 = {-1, 1, 0};
    vector_t right2 = {1, 1, 0};
    triangle_t right = {rightTop, right1, right2, Cyan};
    vector_t leftTop = {0, 0, 3};
    vector_t left1 = {-1, -1, 0};
    vector_t left2 = {1, -1, 0};
    triangle_t left = {leftTop, left1, left2, Magenta};
    vector_t frontTop = {0, 0, 3};
    vector_t front1 = {1, 1, 0};
    vector_t front2 = {1, -1, 0};
    triangle_t front = {frontTop, front1, front2, Green};
    triangle_t triangles[worldA.numTriangles];
    triangles[0] = back;
    triangles[1] = left;
    triangles[2] = right;
    triangles[3] = front;
    worldA.triangles = triangles;

    int16_t rot = 180;
    while (true) {
        cam.rotation.z = rot;
        cam.location.x = 3 * -cos(rot  * (3.14159 / 180.0));
        cam.location.y = 3 * sin(-rot  * (3.14159 / 180.0));
        Render_Engine_RenderFrame(&worldA, &cam, &buf);
        Render_Engine_DisplayFrame(SUBSYSTEM_UART, &buf);
        if (rot <= -179) {
            rot = 180;
        } else {
            rot--;
        }
    }

    while (1) {
        SystemTick();
    }

    return 0;
}

Typedef Documentation

typedef struct camera camera_t

typedef struct framebuffer framebuffer_t

typedef struct point point_t

typedef float rounding_t

typedef struct triangle triangle_t

typedef struct vector vector_t

typedef struct world world_t

Enumeration Type Documentation

enum pixel_color

Enumerator
Black
Red
Green
Yellow
Blue
Magenta
Cyan
White

Function Documentation

void Render_Engine_DisplayFrame	(	uint8_t	channel,
		framebuffer_t *	framebuffer
	)

Display a frame.

Output the contents of a framebuffer over a UART channel. Before writing, this function makes sure the UART buffer is empty. As there is so much data sent over UART, buffers get in the way of operation. This directly accesses the HAL UART code to get around the buffer of the UART code. This method is blocking during the writing process.

Parameters

channel	UART channel to output the framebuffer over.
framebuffer	Framebuffer to display on the console.

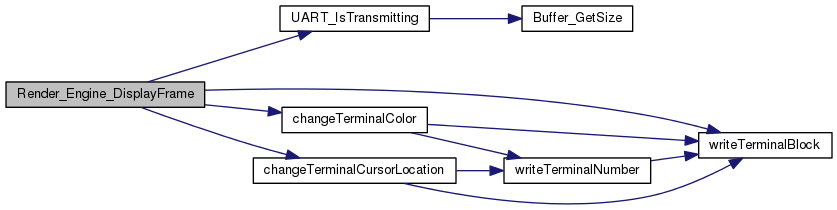

Here is the call graph for this function:

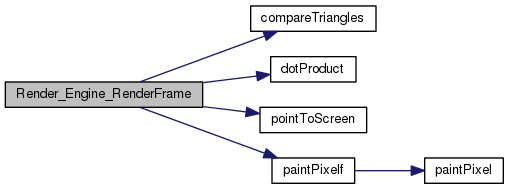

void Render_Engine_RenderFrame	(	world_t *	world,
		camera_t *	camera,
		framebuffer_t *	framebuffer
	)

Render a frame.

Renders a frame of data based on a list of triangles in the world object. Make sure the array in the framebuffer has been created as this will not create the needed array for you. This method is blocking during the rendering process.
