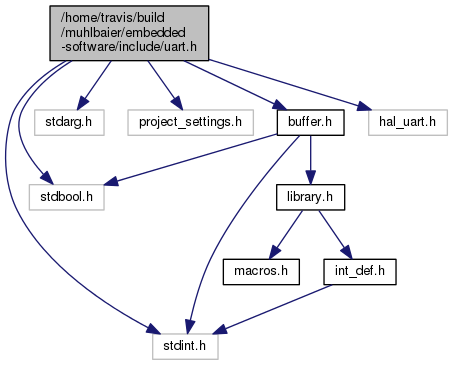

Include dependency graph for uart.h:

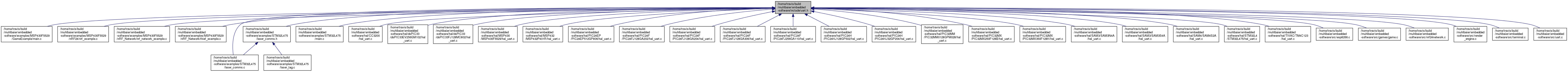

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

enum	uart_errors { BREAK_ERROR = 0, PARITY_ERROR, FRAMING_ERROR, OVERRUN_ERROR, NUM_UART_ERRORS }

void	UART_Init (uint8_t channel)

void	UART_ReconfigureBaud (uint8_t channel, uint32_t baud)
	Change baud rate. More...

void	UART_WriteByte (uint8_t channel, uint8_t c)
	Write a single byte to UART. More...

int8_t	UART_Write (uint8_t channel, uint8_t *data, uint16_t length)
	Write chunk of data to UART tx buffer. More...

uint8_t	UART_IsTransmitting (uint8_t channel)
	Returns 0 or num bytes to indicate if the UART is transmitting. More...

void	UART_Tick (void)
	Main UART routine which calls subscribers and handles errors. More...

int8_t	UART_RegisterReceiver (uint8_t channel, void(*fn)(uint8_t))
	register a character receiver for a UART channel to receive data More...

void	UART_UnregisterReceiver (uint8_t channel, void(*fn)(uint8_t))
	Unregister a receiver added by UART_RegisterReceiver() More...

void	UART_RegisterErrorCallback (uint8_t channel, void(*callback)(enum uart_errors))
	Register callback function to handle UART errors. More...

void	UART_RegisterTxOverwriteCallback (uint8_t channel, void(*overwriteCallback)(void))
	Register callback function to be called when/if the UART Tx buffer overflows. More...

void	UART_RegisterRxOverwriteCallback (uint8_t channel, void(*overwriteCallback)(void))
	Register callback function to be called when/if the UART Rx buffer overflows. More...

void	hal_UART_Init (uint8_t channel, uint32_t baud)
	initialize UART channel at specified baud rate More...

void	hal_UART_ReconfigureBaud (uint8_t channel, uint32_t baud)
	change the baud rate for the UART channel More...

void	UART_Tx_Handler (uint8_t channel)
	UART transmit interrupt handler. More...

void	UART_Rx_Handler (uint8_t channel)
	UART receive interrupt handler. More...

void	UART_Error_Handler (uint8_t channel, enum uart_errors error)
	UART error (interrupt) handler. More...

void	hal_UART_Enable (uint8_t channel)
	Enable UART peripheral for given channel. More...

void	hal_UART_Disable (uint8_t channel)
	Disable UART peripheral for given channel. More...

uint8_t	hal_UART_SpaceAvailable (uint8_t channel)
	return 0 if no space is available in the hardware UART tx buffer More...

uint8_t	hal_UART_DataAvailable (uint8_t channel)
	return 0 if no data is available in the hardware UART rx buffer More...

void	hal_UART_ClearRxIF (uint8_t channel)
	clear the UART rx interrupt flags More...

void	hal_UART_ClearTxIF (uint8_t channel)
	clear the UART tx interrupt flags More...

void	hal_UART_EnableRxInterrupt (uint8_t channel)
	enable the UART rx interrupt More...

void	hal_UART_EnableTxInterrupt (uint8_t channel)
	enable the UART tx interrupt More...

void	hal_UART_DisableRxInterrupt (uint8_t channel)
	disable the UART rx interrupt More...

void	hal_UART_DisableTxInterrupt (uint8_t channel)
	disable the UART tx interrupt More...

uint8_t	hal_UART_RxInterruptEnabled (uint8_t channel)
	Is UART rx interrupt enabled. More...

uint8_t	hal_UART_TxInterruptEnabled (uint8_t channel)
	Is UART tx interrupt enabled. More...

uint8_t	hal_UART_RxByte (uint8_t channel)
	Get character from UART hardware rx register. More...

void	hal_UART_TxByte (uint8_t channel, uint8_t data)
	send character to UART hardware tx register More...

Detailed Description

Created on: Mar 12, 2014

Author: : Michael Muhlbaier Updated on: Feb 7, 2015; Anthony Merlino

Use this module for basic UART communications. Completely interrupt driven and buffered.

Normal usage is:

UART_Init() to initialize a UART channel.
Transmit data – UART_WriteByte() to send a byte – UART_Write() to send an array of bytes – UART_Printf() to send a formatted string
UART_RegisterReceiver() to register a character receiver to process received data
Call UART_Tick() as frequently as possible (every 1ms or more). Note: this happens automatically if using Task Management Module with USE_MODULE_TASK defined in project_settings.h

Enumeration Type Documentation

enum uart_errors

NOTE: This enumeration has to occur BEFORE the include for the hal_uart.h because hal_uart.h includes this uart.h file so that it can see this error enumeration.

Enumerator
BREAK_ERROR
PARITY_ERROR
FRAMING_ERROR
OVERRUN_ERROR
NUM_UART_ERRORS

Function Documentation

void hal_UART_ClearRxIF ( uint8_t channel )

clear the UART rx interrupt flags

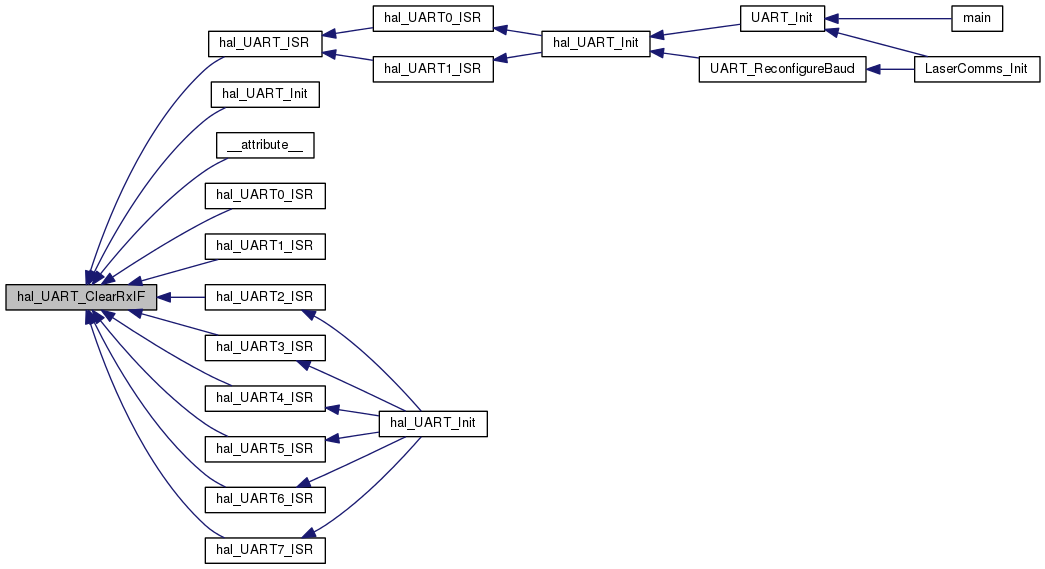

Here is the caller graph for this function:

void hal_UART_ClearTxIF ( uint8_t channel )

clear the UART tx interrupt flags

Here is the caller graph for this function:

uint8_t hal_UART_DataAvailable ( uint8_t channel )

return 0 if no data is available in the hardware UART rx buffer

REQUIRED

void hal_UART_Disable ( uint8_t channel )

Disable UART peripheral for given channel.

Here is the caller graph for this function:

void hal_UART_DisableRxInterrupt ( uint8_t channel )

disable the UART rx interrupt

void hal_UART_DisableTxInterrupt ( uint8_t channel )

disable the UART tx interrupt

REQUIRED

void hal_UART_Enable ( uint8_t channel )

Enable UART peripheral for given channel.

Here is the caller graph for this function:

void hal_UART_EnableRxInterrupt ( uint8_t channel )

enable the UART rx interrupt

Here is the caller graph for this function:

void hal_UART_EnableTxInterrupt ( uint8_t channel )

enable the UART tx interrupt

REQUIRED

Here is the caller graph for this function:

void hal_UART_Init	(	uint8_t	channel,
		uint32_t	baud
	)

initialize UART channel at specified baud rate

REQUIRED

This function should:

Initialize the UART module for the channel specified
Map UART pins if needed
Configure UART interrupts

Parameters

channel	- UART channel to initialize
baud	- integer baud rate (bits/s) to configure UART for

there is some issue with the PIO_WPMR write protect register that is preventing the USART from being configured when this happens. For now the workaround is to set-up the USART first. Commenting the following line of code out will leave the write protect in a disabled state. This is how I (JE?) initially discovered the workaround.

Todo:: add logic to determine which clock to use

there is some issue with the PIO_WPMR write protect register that is preventing the USART from being configured when this happens. For now the workaround is to set-up the USART first. Commenting the following line of code out will leave the write protect in a disabled state. This is how I (JE?) initially discovered the workaround.

Todo:: add logic to determine which clock to use

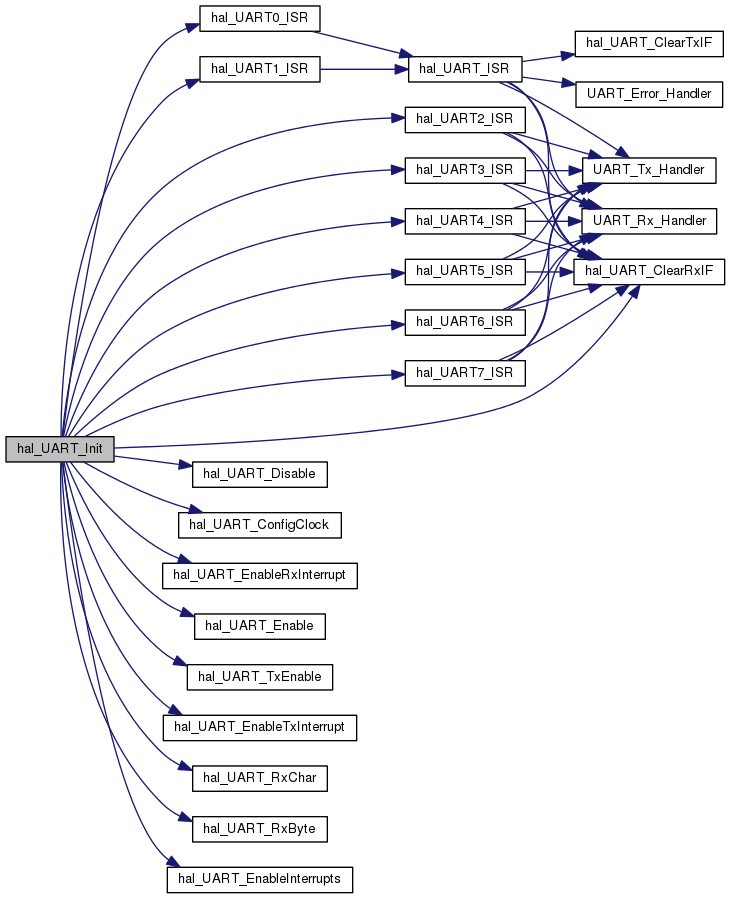

Here is the call graph for this function:

Here is the caller graph for this function:

void hal_UART_ReconfigureBaud	(	uint8_t	channel,
		uint32_t	baud
	)

change the baud rate for the UART channel

Parameters

channel	- UART channel
baud	- integer baud rate (bits/s) to configure UART for

uint8_t hal_UART_RxByte ( uint8_t channel )

Get character from UART hardware rx register.

REQUIRED

Here is the caller graph for this function:

uint8_t hal_UART_RxInterruptEnabled ( uint8_t channel )

Is UART rx interrupt enabled.

uint8_t hal_UART_SpaceAvailable ( uint8_t channel )

return 0 if no space is available in the hardware UART tx buffer

REQUIRED

void hal_UART_TxByte	(	uint8_t	channel,
		uint8_t	data
	)

send character to UART hardware tx register

REQUIRED

uint8_t hal_UART_TxInterruptEnabled ( uint8_t channel )

Is UART tx interrupt enabled.

REQUIRED

void UART_Error_Handler	(	uint8_t	channel,
		enum uart_errors	error
	)

UART error (interrupt) handler.

This function is implemented by the UART module (uart.c) but should be called by the error ISR for the given UART channel or when an error condition is detected by the HAL.

Parameters

channel - channel the interrupt occurred on

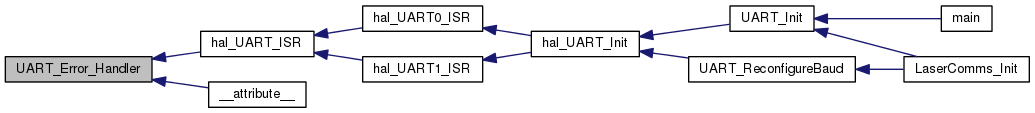

Here is the caller graph for this function:

void UART_Init ( uint8_t channel )

Initialize UART module

Example usage:

UART_Init(UART0_CHANNEL);

Parameters

channel - The channel of UART to be used. Macros for these should be defined in the HAL of the specific device.

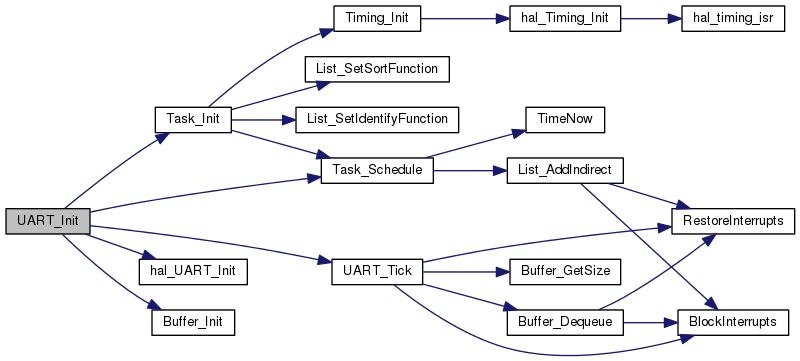

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t UART_IsTransmitting ( uint8_t channel )

Returns 0 or num bytes to indicate if the UART is transmitting.

Parameters

channel - UART channel to check

Returns: 0 if not transmitting, number of bytes in buffer otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_ReconfigureBaud	(	uint8_t	channel,
		uint32_t	baud
	)

Change baud rate.

Parameters

channel	- The channel of the UART to have its baud rate changed.
baud	- The new baud rate.

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_RegisterErrorCallback	(	uint8_t	channel,
		void(*)(enum uart_errors)	callback
	)

Register callback function to handle UART errors.

Will call the callback function when a UART error occurs. The callback should have no return value and a enum uart_errors input.

Parameters

channel	- UART channel to tie the error callback function to
callback	- function pointer to callback function: void CallbackName(enum uart_errors error)

int8_t UART_RegisterReceiver	(	uint8_t	channel,
		void(*)(uint8_t)	fn
	)

register a character receiver for a UART channel to receive data

The receiver function registered will be called by UART_Tick whenever a byte is received. The receiver function should have no return value and a char input.

Parameters

channel	- UART channel to register receiver with
fn	- function pointer to receiver function: void ReceiverName(char c)

Returns: -1 if channel is out of range, -2 if receiver list is full, 0 if successful

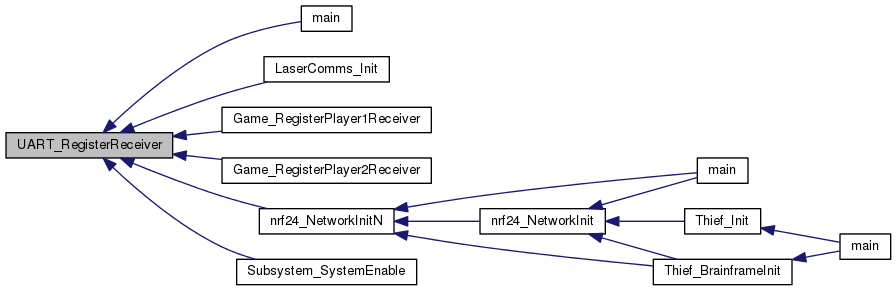

Here is the caller graph for this function:

void UART_RegisterRxOverwriteCallback	(	uint8_t	channel,
		void(*)(void)	overwriteCallback
	)

Register callback function to be called when/if the UART Rx buffer overflows.

Will be called when trying to transmit data and the Rx buffer is full. The callback should have no return value and no input.

Parameters

channel	- UART channel to tie the Rx overwrite callback to
overwriteCallback	- function pointer to callback function: void CallbackName(void)

void UART_RegisterTxOverwriteCallback	(	uint8_t	channel,
		void(*)(void)	overwriteCallback
	)

Register callback function to be called when/if the UART Tx buffer overflows.

Will be called when trying to transmit data and the Tx buffer is full. The callback should have no return value and no input.

Parameters

channel	- UART channel to tie the tx overwrite callback to
overwriteCallback	- function pointer to callback function: void CallbackName(void)

void UART_Rx_Handler ( uint8_t channel )

UART receive interrupt handler.

REQUIRED to be called by HAL

This function is implemented by the UART module (uart.c) but should be called by the ISR for the given UART channel.

Parameters

channel - channel the interrupt occurred on

Here is the call graph for this function:

void UART_Tick ( void )

Main UART routine which calls subscribers and handles errors.

If the task management module is used and USE_MODULE_TASK is defined then this function will automatically run via the task management system. Otherwise the user should call UART_Tick() frequently to handle incoming data.

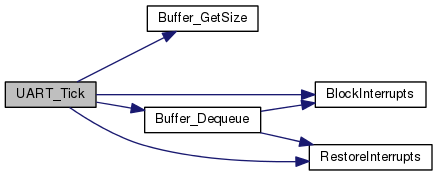

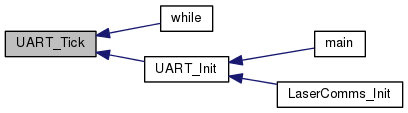

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_Tx_Handler ( uint8_t channel )

UART transmit interrupt handler.

REQUIRED to be called by HAL

This function is implemented by the UART module (uart.c) but should be called by the ISR for the given UART channel.

Parameters

channel - channel the interrupt occurred on

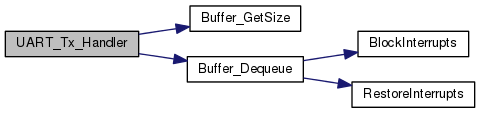

Here is the call graph for this function:

void UART_UnregisterReceiver	(	uint8_t	channel,
		void(*)(uint8_t)	fn
	)

Unregister a receiver added by UART_RegisterReceiver()

Parameters

channel	- UART channel to unregister receiver on
fn	- function pointer to receiver function: void ReceiverName(char c)

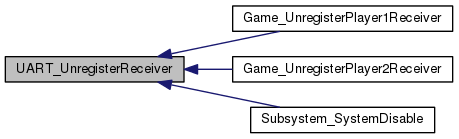

Here is the caller graph for this function:

int8_t UART_Write	(	uint8_t	channel,
		uint8_t *	data,
		uint16_t	length
	)

Write chunk of data to UART tx buffer.

Parameters

channel	- the UART channel to send on
data	- a pointer to the data to send
length	- the amount of data to send

Returns: 0 = success, -1 = not enough room in buffer, -2 = Invalid channel

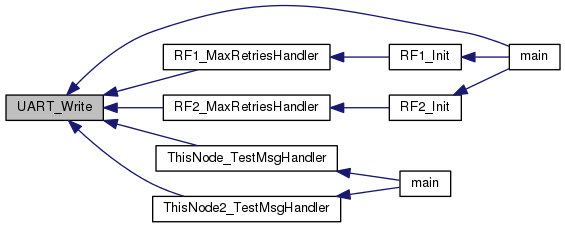

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_WriteByte	(	uint8_t	channel,
		uint8_t	c
	)

Write a single byte to UART.

Transmit a single byte over the UART channel

Parameters

channel	- The UART channel to send the byte over
c	- the byte to send

Here is the call graph for this function:
