#include "uart.h"
#include "hal_general.h"

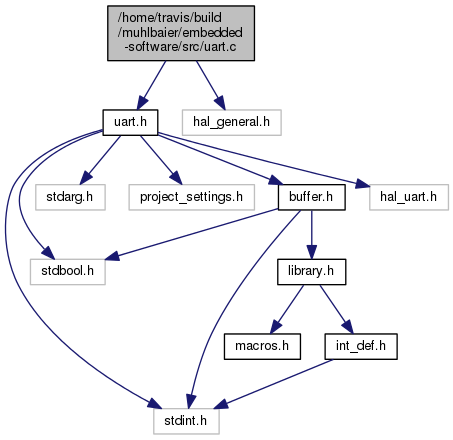

Include dependency graph for uart.c:

Data Structures
struct	receiver_list_t

Macros
#define	UART_BAUD 115200

#define	NUM_RECEIVERS 2

#define	UART_TX_BUFFER_LENGTH 128

#define	UART_RX_BUFFER_LENGTH 32

#define	UART_MAX_CHARS_PER_CALL 20

Typedefs
typedef void(*	receiver_callback_t )(uint8_t)

Functions
void	UART_Init (uint8_t channel)

void	UART_Tick (void)
	Main UART routine which calls subscribers and handles errors. More...

void	UART_ReconfigureBaud (uint8_t channel, uint32_t baud)
	Change baud rate. More...

void	UART_WriteByte (uint8_t channel, uint8_t data)
	Write a single byte to UART. More...

int8_t	UART_Write (uint8_t channel, uint8_t *data, uint16_t length)
	Write chunk of data to UART tx buffer. More...

int8_t	UART_RegisterReceiver (uint8_t channel, receiver_callback_t fn)
	register a character receiver for a UART channel to receive data More...

void	UART_UnregisterReceiver (uint8_t channel, receiver_callback_t fn)
	Unregister a receiver added by UART_RegisterReceiver() More...

uint8_t	UART_IsTransmitting (uint8_t channel)
	Returns 0 or num bytes to indicate if the UART is transmitting. More...

void	UART_Tx_Handler (uint8_t channel)
	UART transmit interrupt handler. More...

void	UART_Rx_Handler (uint8_t channel)
	UART receive interrupt handler. More...

void	UART_Error_Handler (uint8_t channel, enum uart_errors error)
	UART error (interrupt) handler. More...

void	UART_RegisterErrorCallback (uint8_t channel, void(*callback)(enum uart_errors))
	Register callback function to handle UART errors. More...

void	UART_RegisterTxOverwriteCallback (uint8_t channel, void(*overwriteCallback)(void))
	Register callback function to be called when/if the UART Tx buffer overflows. More...

void	UART_RegisterRxOverwriteCallback (uint8_t channel, void(*overwriteCallback)(void))
	Register callback function to be called when/if the UART Rx buffer overflows. More...

Variables
struct {
buffer_t * rx

buffer_t * tx

receiver_list_t * receiverList

uint8_t errorStatus

void(* errorNotificationCallback )(enum uart_errors)

}	uart [NUM_UARTS]

uint8_t	rx_flags

uint8_t	error_flags

Macro Definition Documentation

#define NUM_RECEIVERS 2

#define UART_BAUD 115200

#define UART_MAX_CHARS_PER_CALL 20

#define UART_RX_BUFFER_LENGTH 32

#define UART_TX_BUFFER_LENGTH 128

Typedef Documentation

typedef void(* receiver_callback_t)(uint8_t)

Function Documentation

void UART_Error_Handler	(	uint8_t	channel,
		enum uart_errors	error
	)

UART error (interrupt) handler.

This function is implemented by the UART module (uart.c) but should be called by the error ISR for the given UART channel or when an error condition is detected by the HAL.

Parameters

channel - channel the interrupt occurred on

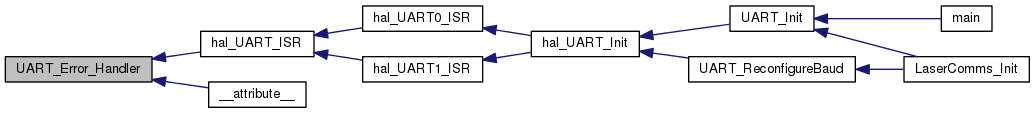

Here is the caller graph for this function:

void UART_Init ( uint8_t channel )

Initialize UART module

Example usage:

UART_Init(UART0_CHANNEL);

Parameters

channel - The channel of UART to be used. Macros for these should be defined in the HAL of the specific device.

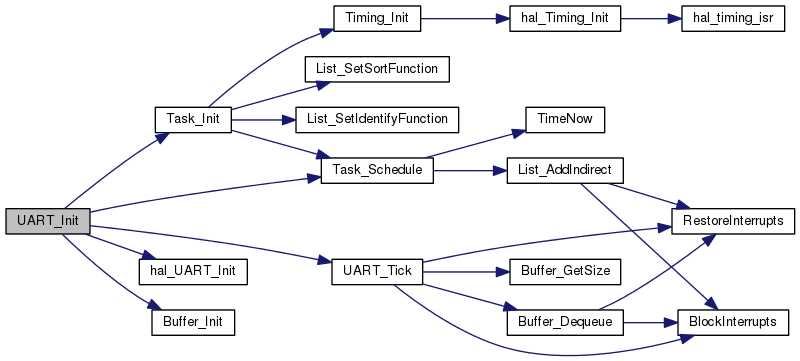

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t UART_IsTransmitting ( uint8_t channel )

Returns 0 or num bytes to indicate if the UART is transmitting.

Parameters

channel - UART channel to check

Returns: 0 if not transmitting, number of bytes in buffer otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_ReconfigureBaud	(	uint8_t	channel,
		uint32_t	baud
	)

Change baud rate.

Parameters

channel	- The channel of the UART to have its baud rate changed.
baud	- The new baud rate.

Here is the call graph for this function:

Here is the caller graph for this function:

void UART_RegisterErrorCallback	(	uint8_t	channel,
		void(*)(enum uart_errors)	callback
	)

Register callback function to handle UART errors.

Will call the callback function when a UART error occurs. The callback should have no return value and a enum uart_errors input.

Parameters

channel	- UART channel to tie the error callback function to
callback	- function pointer to callback function: void CallbackName(enum uart_errors error)

int8_t UART_RegisterReceiver	(	uint8_t	channel,
		void(*)(uint8_t)	fn
	)

register a character receiver for a UART channel to receive data

The receiver function registered will be called by UART_Tick whenever a byte is received. The receiver function should have no return value and a char input.

Parameters

channel	- UART channel to register receiver with
fn	- function pointer to receiver function: void ReceiverName(char c)

Returns: -1 if channel is out of range, -2 if receiver list is full, 0 if successful

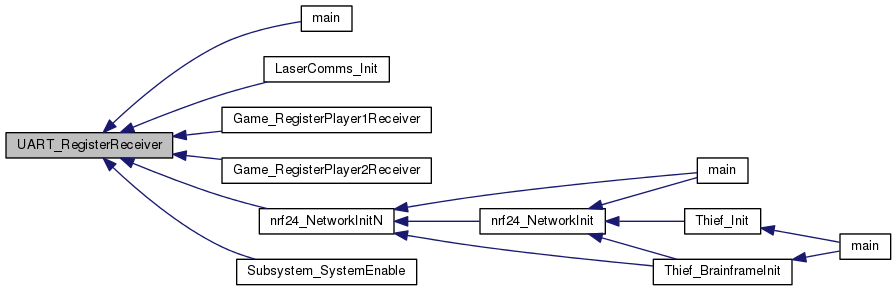

Here is the caller graph for this function:

void UART_RegisterRxOverwriteCallback	(	uint8_t	channel,
		void(*)(void)	overwriteCallback
	)

Register callback function to be called when/if the UART Rx buffer overflows.

Will be called when trying to transmit data and the Rx buffer is full. The callback should have no return value and no input.

Parameters

channel	- UART channel to tie the Rx overwrite callback to
overwriteCallback	- function pointer to callback function: void CallbackName(void)

void UART_RegisterTxOverwriteCallback	(	uint8_t	channel,
		void(*)(void)	overwriteCallback
	)

Register callback function to be called when/if the UART Tx buffer overflows.

Will be called when trying to transmit data and the Tx buffer is full. The callback should have no return value and no input.

Parameters

channel	- UART channel to tie the tx overwrite callback to
overwriteCallback	- function pointer to callback function: void CallbackName(void)

void UART_Rx_Handler ( uint8_t channel )

UART receive interrupt handler.

REQUIRED to be called by HAL

This function is implemented by the UART module (uart.c) but should be called by the ISR for the given UART channel.

Parameters

channel - channel the interrupt occurred on

Here is the call graph for this function:

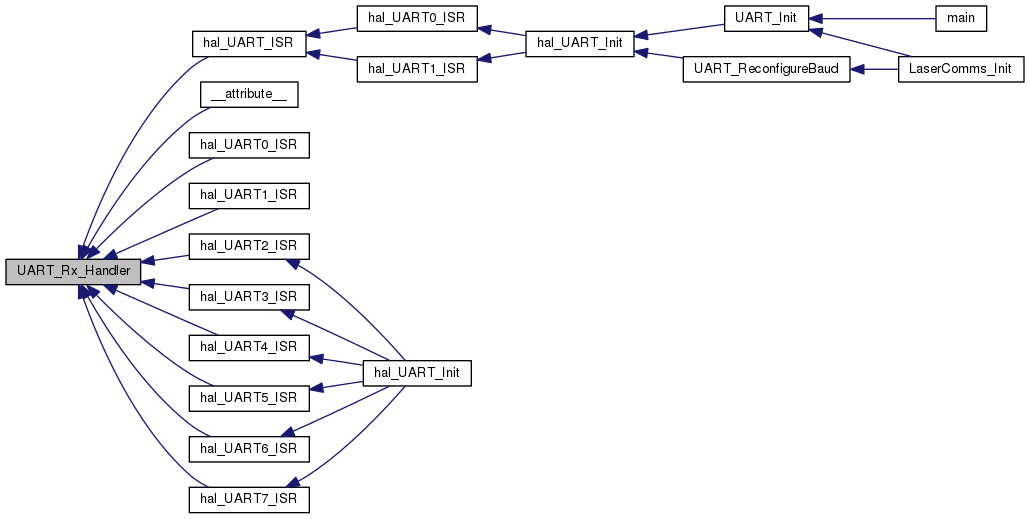

Here is the caller graph for this function:

void UART_Tick ( void )

Main UART routine which calls subscribers and handles errors.

If the task management module is used and USE_MODULE_TASK is defined then this function will automatically run via the task management system. Otherwise the user should call UART_Tick() frequently to handle incoming data.

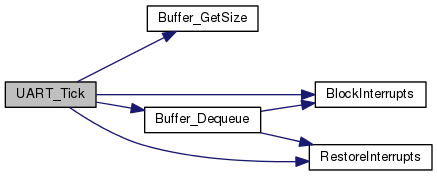

Here is the call graph for this function:
