Terminal Helper Functions

Enumerations
enum	term_color {   Reset_all_attributes = 0, Bright, Dim, Underscore,   Blink, Reverse, Hidden, ForegroundBlack = 30,   ForegroundRed, ForegroundGreen, ForegroundYellow, ForegroundBlue,   ForegroundMagenta, ForegroundCyan, ForegroundWhite, BackgroundBlack = 40,   BackgroundRed, BackgroundGreen, BackgroundYellow, BackgroundBlue,   BackgroundMagenta, BackgroundCyan, BackgroundWhite }

Functions
void	Terminal_CharXY (uint8_t channel, char c, char x, char y)
void	Terminal_CursorXY (uint8_t channel, char x, char y)
void	Terminal_HideCursor (uint8_t channel)
void	Terminal_ShowCursor (uint8_t channel)
void	Terminal_SetColor (uint8_t channel, enum term_color color)
void	Terminal_ClearScreen (uint8_t channel)

Detailed Description

Enumeration Type Documentation

enum term_color

This enumeration allows the user to easily set up specific configurations for the characters which are printed to the terminal. The position in this enumeration corresponds to the ANSI Escape Sequences for color text and formatting. Please reference http://bluesock.org/~willg/dev/ansi.html for specifics on which element in the enumeration is responsible for controlling what attribute within the terminal.

Warning

RT 10/10

Enumerator
Reset_all_attributes
Bright
Dim
Underscore
Blink
Reverse
Hidden
ForegroundBlack
ForegroundRed
ForegroundGreen
ForegroundYellow
ForegroundBlue
ForegroundMagenta
ForegroundCyan
ForegroundWhite
BackgroundBlack
BackgroundRed
BackgroundGreen
BackgroundYellow
BackgroundBlue
BackgroundMagenta
BackgroundCyan
BackgroundWhite

Function Documentation

void Terminal_CharXY	(	uint8_t	channel,
		char	c,
		char	x,
		char	y
	)

Reusable function to push a character to a terminal at a specific location.

This function will only work when the buffer is used to communicate to a terminal supporting the used features (e.g. PuTTY)

Location 0,0 is the top left corner of the terminal

Parameters

channel	UART channel
c	char to send
x	zero base x location
y	zero base y location

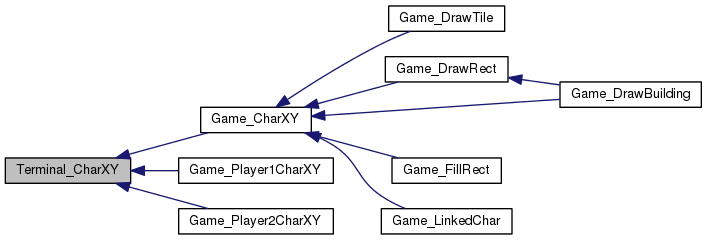

Here is the caller graph for this function:

void Terminal_ClearScreen

(

uint8_t

channel

)

Function to clear terminal

This function allows you to clear the entire terminal screen. This function creates a new terminal page through the ASCII code "\f".

Parameters

channel
color

void Terminal_CursorXY	(	uint8_t	channel,
		char	x,
		char	y
	)

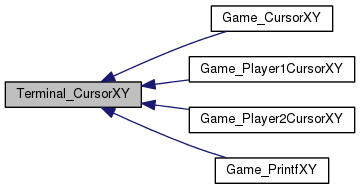

Here is the caller graph for this function:

void Terminal_HideCursor

(

uint8_t

channel

)

Function to turn the cursor off

This function will make the cursor within the terminal hidden by utilizing the DECTCEM (DEC text cursor enable mode) escape sequence "%c[?25l". The ASCII_ESC character is needed so the terminal knows that the above sequence is a control sequence.

Parameters

channel

UART Channel

Warning

RT 10/10

void Terminal_SetColor	(	uint8_t	channel,
		enum term_color	color
	)

Function to set color of terminal

This function allows you to set the color of the terminal. The function utilizes the ASCII code "%c[%dm" to implement the function. The ASCII_ESC character is needed so the terminal knows that the above sequence is a control sequence, c. The ASCII color represented by d in the ASCII code is used to change the coloring. Dependant on the value of color will depend on the change. For example: 0-9 gives you different attributes such as bold/invisible/bright; using 30-39 will change the foreground coloring; using 40-49 will change the background coloring. Check https://en.wikipedia.org/wiki/ANSI_escape_code for more details of the commands.

Parameters

channel
color

Here is the caller graph for this function:

void Terminal_ShowCursor

(

uint8_t

channel

)

Function to turn the cursor on

This function will make the cursor within the terminal hidden by utilizing the DECTCEM (DEC text cursor enable mode) escape sequence "%c?25h". The ASCII_ESC character is needed so the terminal knows that the above sequence is a control sequence.

Parameters

channel
