nRF24L01+ Network (geared for class projects)

Data Structures
union	nrfnet_address_t
struct	nrfnet_msg_t
struct	nrfnet_s

Macros
#define	NRF24_CHANNEL_BRANCH_1   30
#define	NRF24_CHANNEL_BRANCH_2   34
#define	NRF24_CHANNEL_BRANCH_3   38
#define	NRF24_CHANNEL_BRANCH_4   42
#define	NRF24_CHANNEL_BRANCH_5   46
#define	NRF24_CHANNEL_BRANCH_6   50
#define	NRF24_ADDRESS_MASK   0x6C6C6C7800
#define	NRF24_MIN_WINDOW_MS   8
#define	NRF24_BRANCH_WINDOW_MS   7
#define	NRF24_TICK_MS   2
#define	NRF24_MISSING_NODE_TIMEOUT   100
#define	NRFNET_MSG_BUFFER_LENGTH   16
#define	nrf24_NetworkISRHandlerN(net)   nRF24_ISR(&net.radio)

Typedefs
typedef void(*	nrf24_handler_fn_t )(uint8_t *data, uint8_t len, uint8_t from)
typedef struct nrfnet_s	nrfnet_t

Enumerations
enum	nrf24_msg_id {   SYSTEM_MSG = 0, CONTROL_MSG, SENSOR_MSG, CHAT_MSG,   TEST_MSG, KILL_MSG, THIEF_MSG, LAST_MSG_ID }
enum	nrf24_system_msg { NULL_MSG = 0, PING_MSG, PING_RESPONSE_MSG, SPAM_MSG }
enum	nrf24_control_msg { ONBOARD_LED, LINEAR_ACTUATOR, LAST_CONTROL_ID }
enum	nrf24_sensor_msg { TEMPERATURE_SENSOR, LAST_SENSOR_ID }
enum	nrf24_thief_msg {   ARM_MSG, DISARM_MSG, TRIP_MSG, ACCESS_MSG,   ERROR_MSG, DIFFICULTY_MSG, LAST_THIEF_ID }
enum	nrf24_address {   MASTER = 0x00, SCRUM_PUN = 0x08, BALL_TRAP, TOMS_PAD,   NOODLE, MOUSE_TRAP = 0x10, ULTRASONIC = 0x18, DAN,   CAM, JAKE, SUPREME = 0x20, BOT,   SNEAK, LASER, SIMON, OGLAZERBOIZ = 0x28,   OGLAZ2, LOCK_PICK, PIEZO, MIKE = 0x30,   SORCE, MALONEY, MUHLBAIER, LAST_ADDRESS,   ALL_ALL = 0x3F }
enum	nrfstate_e { NRFNET_INITIALIZED = 0x00, NRFNET_NORMAL_STATE = 0x00, NRFNET_WAITING_FOR_MIN_WINDOW }
enum	nrfrole_e { ROLE_MASTER, ROLE_BRANCH, ROLE_LEAF }
enum	pipe_status_e { CHILD_INITIALIZED, CHILD_ACTIVE, CHILD_MISSING }

Functions
void	nrf24_NetworkInit (void(*ce)(uint8_t), void(*csn)(uint8_t), uint8_t spi_channel)
	Initialize nRF24 Network Module. More...
void	nrf24_NetworkInitN (nrfnet_t *net, void(*ce)(uint8_t), void(*csn)(uint8_t), uint8_t spi_channel, uint8_t node)
void	nrf24_RegisterMsgHandler (enum nrf24_msg_id msg_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_RegisterMsgHandlerN (nrfnet_t *net, enum nrf24_msg_id msg_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_SendMsg (uint8_t to, enum nrf24_msg_id msg_id, uint8_t *data, uint8_t len)
void	nrf24_SendMsgN (nrfnet_t *net, uint8_t to, enum nrf24_msg_id msg_id, uint8_t *data, uint8_t len)
void	nrf24_RegisterControlHandler (enum nrf24_control_msg control_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_RegisterControlHandlerN (nrfnet_t *net, enum nrf24_control_msg control_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_RegisterSensorHandler (enum nrf24_sensor_msg sensor_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_RegisterSensorHandlerN (nrfnet_t *net, enum nrf24_sensor_msg sensor_id, nrf24_handler_fn_t fn_ptr)
void	nrf24_NetworkISRHandler (void)
void	nrf24_Ping (uint8_t to)
char *	NameFromAddress (uint8_t address)
uint8_t	AddressFromName (char *name)

Detailed Description

Version

0.1

Dependencies: nrf24.h spi.h task.h timing.h subsys.h uart.h

Default Pinouts:

MSP430F5529:

• MISO P3.1
• MOSI P3.0
• SCK P3.2
• CS P2.3
• CE P2.4
• IRQ P2.5

PIC32MX250F128B:

• MISO pin3/A1
• MOSI pin24/B13
• SCK pin25/B14
• CS pin7/B3
• CE pin6/B2
• IRQ pin9/A2

Created on April 7, 2015, 6:24 PM

Macro Definition Documentation

#define NRF24_ADDRESS_MASK   0x6C6C6C7800

#define NRF24_BRANCH_WINDOW_MS   7

#define NRF24_CHANNEL_BRANCH_1   30

#define NRF24_CHANNEL_BRANCH_2   34

#define NRF24_CHANNEL_BRANCH_3   38

#define NRF24_CHANNEL_BRANCH_4   42

#define NRF24_CHANNEL_BRANCH_5   46

#define NRF24_CHANNEL_BRANCH_6   50

#define NRF24_MIN_WINDOW_MS   8

#define NRF24_MISSING_NODE_TIMEOUT   100

#define nrf24_NetworkISRHandlerN

(

net

)

nRF24_ISR(&net.radio)

#define NRF24_TICK_MS   2

#define NRFNET_MSG_BUFFER_LENGTH   16

Typedef Documentation

typedef void(* nrf24_handler_fn_t)(uint8_t *data, uint8_t len, uint8_t from)

function pointer type for consuming certain msg_id's

typedef struct nrfnet_s nrfnet_t

Enumeration Type Documentation

enum nrf24_address

Enumerator
MASTER	Brainframe / Scrumshank Redemption.
SCRUM_PUN	Branch 1 - ScrumPun.
BALL_TRAP
TOMS_PAD
NOODLE
MOUSE_TRAP	Branch 2 - RedBulls.
ULTRASONIC	Branch 3 - SmartHomies.
DAN
CAM
JAKE
SUPREME	Branch 4 - TeamSupreme.
BOT
SNEAK
LASER
SIMON
OGLAZERBOIZ	Branch 5 - Muhlbaier's Fav. Clinic.
OGLAZ2
LOCK_PICK
PIEZO
MIKE	Branch 6 - Scrumshank Redemption.
SORCE
MALONEY
MUHLBAIER
LAST_ADDRESS
ALL_ALL

enum nrf24_control_msg

Enumerator
ONBOARD_LED
LINEAR_ACTUATOR
LAST_CONTROL_ID	reserved name to determine number of control msgs supported

enum nrf24_msg_id

Enumerator
SYSTEM_MSG	built-in / MM
CONTROL_MSG	general control msg / max payload 5+ bytes
SENSOR_MSG	general sensor msg / max payload 4+ bytes
CHAT_MSG	built-in / Jon W.
TEST_MSG	Used for testing the network.
KILL_MSG	Used to remotely kill (reset) a node on the network.
THIEF_MSG	Used to support the Theif class project.
LAST_MSG_ID	reserved name to determine number of message IDs supported

enum nrf24_sensor_msg

Enumerator
TEMPERATURE_SENSOR
LAST_SENSOR_ID	reserved name to determine number of sensors supported

enum nrf24_system_msg

Enumerator
NULL_MSG
PING_MSG
PING_RESPONSE_MSG
SPAM_MSG

enum nrf24_thief_msg

Enumerator
ARM_MSG	Brainframe->Thing, data is difficulty.
DISARM_MSG	Brainframe->Thing, data is difficulty.
TRIP_MSG	Thing->Brainframe, data is score (1 barely tripped)
ACCESS_MSG	Thing->Brainframe, data is score (1 great job)
ERROR_MSG	Thing->Brainframe, data is error code (TBD)
DIFFICULTY_MSG	Brainframe->Thing, data is difficulty.
LAST_THIEF_ID	reserved name to determine number of messages supported

enum nrfrole_e

Enumerator
ROLE_MASTER
ROLE_BRANCH
ROLE_LEAF

enum nrfstate_e

Enumerator
NRFNET_INITIALIZED
NRFNET_NORMAL_STATE
NRFNET_WAITING_FOR_MIN_WINDOW

enum pipe_status_e

Enumerator
CHILD_INITIALIZED
CHILD_ACTIVE
CHILD_MISSING

Function Documentation

uint8_t AddressFromName

(

char *

name

)

Parameters

name	pointer to name to lookup

Returns

address network address

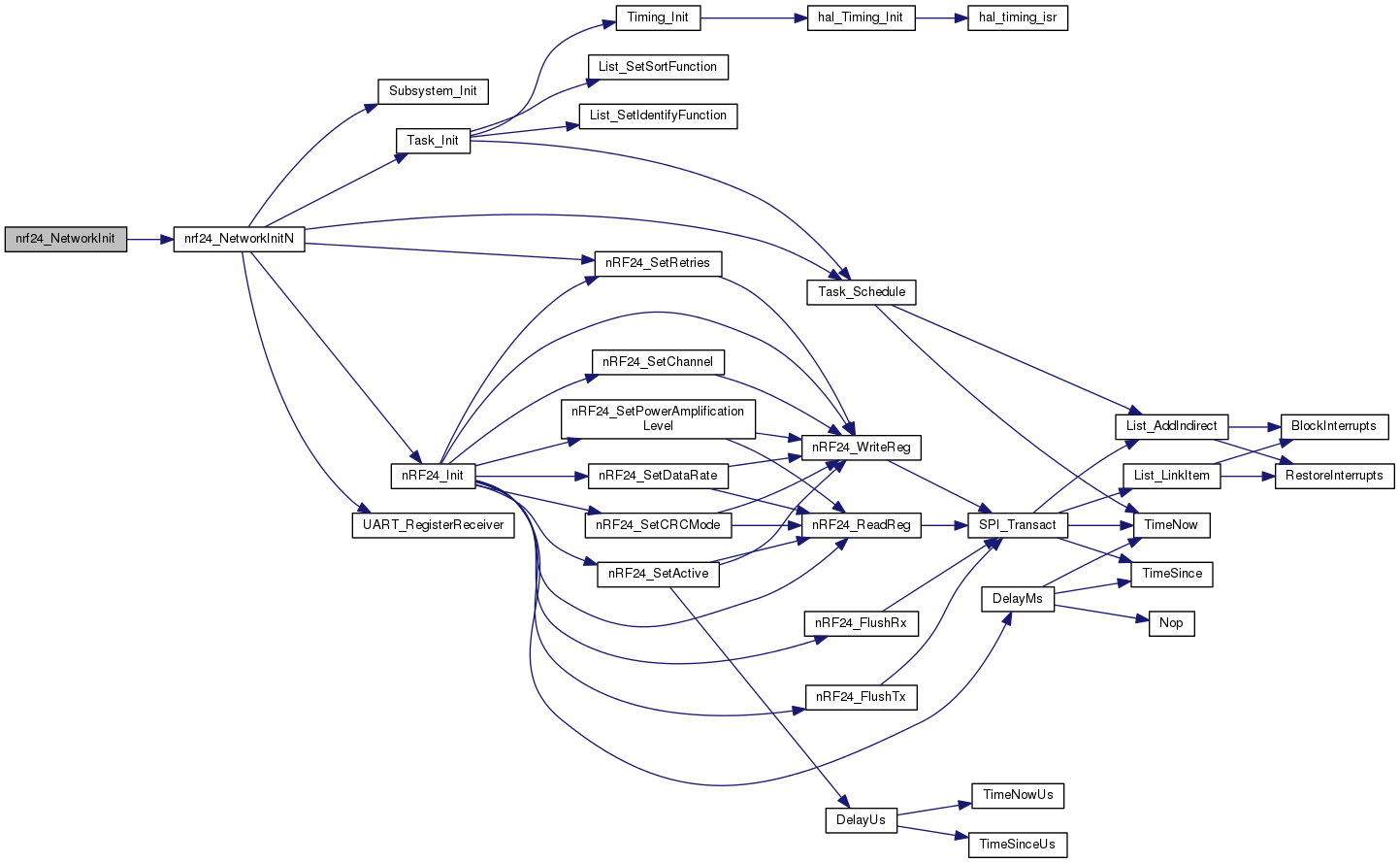

Here is the call graph for this function:

char* NameFromAddress

(

uint8_t

address

)

Convert network address to name

Parameters

address

address to convert to name

Returns

string pointer to name

void nrf24_NetworkInit	(	void(*)(uint8_t)	ce,
		void(*)(uint8_t)	csn,
		uint8_t	spi_channel
	)

Initialize nRF24 Network Module.

Parameters

ce	Function pointer to Chip Enable signal function. If input to the function is 0 the CE line should output GND. If the input to the function is 1 the CE pin should output 3.3V
csn	Function pointer to Not Chip Select signal function. If input to the function is 0 the CSN line should output GND. If the input to the function is 1 the CSN pin should output 3.3V
spi_channel	SPI channel number to be passed to the SPI Module

Here is the call graph for this function:

Here is the caller graph for this function:

void nrf24_NetworkInitN	(	nrfnet_t *	net,
		void(*)(uint8_t)	ce,
		void(*)(uint8_t)	csn,
		uint8_t	spi_channel,
		uint8_t	node
	)

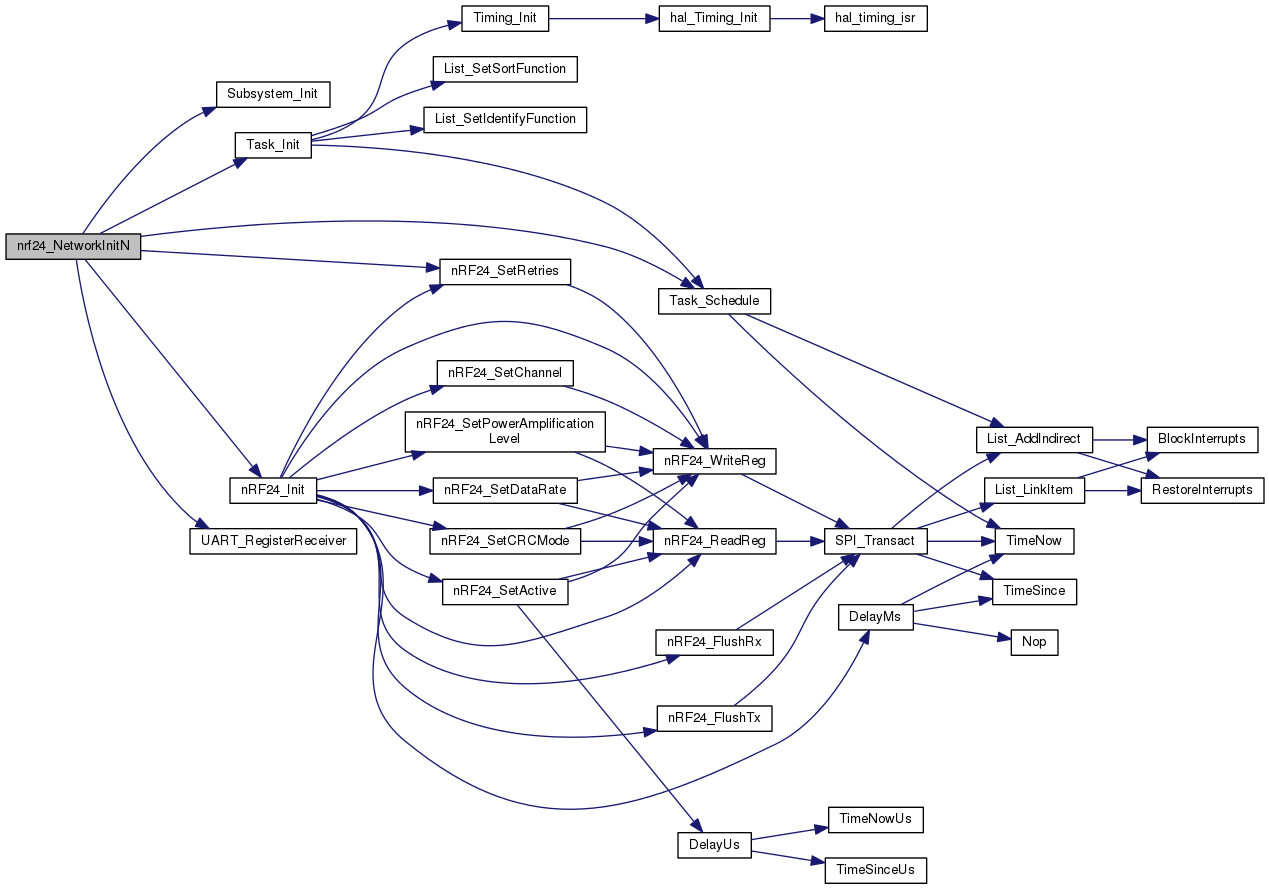

Here is the call graph for this function:

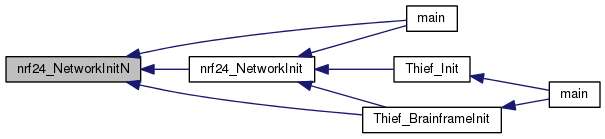

Here is the caller graph for this function:

void nrf24_NetworkISRHandler

(

void

)

Here is the caller graph for this function:

void nrf24_Ping

(

uint8_t

to

)

Here is the call graph for this function:

void nrf24_RegisterControlHandler	(	enum nrf24_control_msg	control_id,
		nrf24_handler_fn_t	fn_ptr
	)

Register a control message Handler for a specific control ID

Same as nrf24_RegisterMsgHandler() except the Handler will be called when the message ID is CONTROL_MSG and the control_id (byte after msg ID, i.e. byte 4) matches control_id.

Parameters

control_id	Control ID to register Handler for
fn_ptr	Pointer to Handler function

Here is the call graph for this function:

void nrf24_RegisterControlHandlerN	(	nrfnet_t *	net,
		enum nrf24_control_msg	control_id,
		nrf24_handler_fn_t	fn_ptr
	)

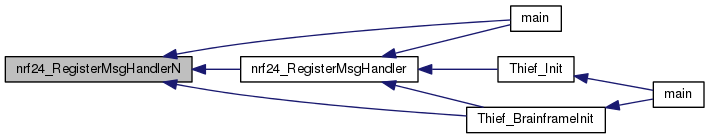

Here is the caller graph for this function:

void nrf24_RegisterMsgHandler	(	enum nrf24_msg_id	msg_id,
		nrf24_handler_fn_t	fn_ptr
	)

Register a message Handler for a specific message ID

When a message with a message ID that matches msg_id is received the Handler function will be called with a data pointer to the remaining payload (data), the length of the remaining payload (len), and the from address (from).

Only one handler per message ID may be registered.

Handlers for SYSTEM_MSG, CONTROL_MSG, SENSOR_MSG, and CHAT_MSG are built-in but can be overridden.

Example:

void PongHandler(uint8_t * data, uint8_t len, uint8_t from) {
    // implement pong handler
}
nrf24_RegisterMsgHandler(PONG_MSG, PongHandler);

Parameters

msg_id	Message ID to register Handler for
fn_ptr	Pointer to Handler function

Here is the call graph for this function:

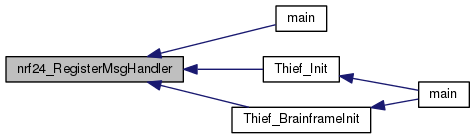

Here is the caller graph for this function:

void nrf24_RegisterMsgHandlerN	(	nrfnet_t *	net,
		enum nrf24_msg_id	msg_id,
		nrf24_handler_fn_t	fn_ptr
	)

Here is the caller graph for this function:

void nrf24_RegisterSensorHandler	(	enum nrf24_sensor_msg	sensor_id,
		nrf24_handler_fn_t	fn_ptr
	)

Register a sensor message Handler for a specific sensor ID

Same as nrf24_RegisterMsgHandler() except the Handler will be called when the message ID is SENSOR_MSG and the sensor_id (byte after msg ID, i.e. byte 4) matches sensor_id.

Parameters

sensor_id	Sensor ID to register Handler for
fn_ptr	Pointer to Handler function

Here is the call graph for this function:

void nrf24_RegisterSensorHandlerN	(	nrfnet_t *	net,
		enum nrf24_sensor_msg	sensor_id,
		nrf24_handler_fn_t	fn_ptr
	)

Here is the caller graph for this function:

void nrf24_SendMsg	(	uint8_t	to,
		enum nrf24_msg_id	msg_id,
		uint8_t *	data,
		uint8_t	len
	)

Send a message over the nRF24 network

Parameters

to	address to send message to (use enum nrf24_address for now)
msg_id	Message ID
data	pointer to data payload (address bytes and message ID will be generated automatically, this pointer should point to the fourth byte of the payload).
len	length to the data payload (min 0, max 29)

Here is the call graph for this function:

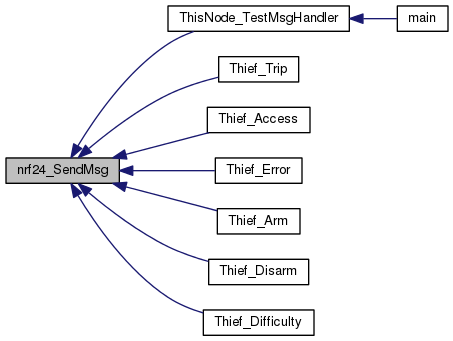

Here is the caller graph for this function:

void nrf24_SendMsgN	(	nrfnet_t *	net,
		uint8_t	to,
		enum nrf24_msg_id	msg_id,
		uint8_t *	data,
		uint8_t	len
	)

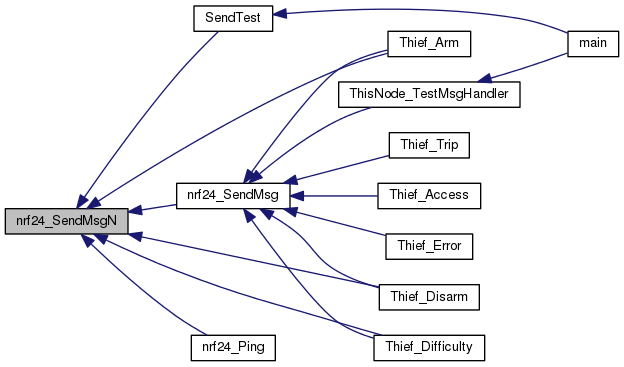

Here is the caller graph for this function:
