nRF24L01+ Module

Data Structures
struct	nrf24_radio_t

Macros
#define	nRF24_ISR(nrf_object)   Task_Queue( (task_t)nRF24_EventHandler, nrf_object)

Typedefs
typedef struct nrf24_radio_t	nrf24_t

Enumerations
enum	nrf24_pa_level_e { NRF24_PA_LOW = 0, NRF24_PA_MID, NRF24_PA_HIGH, NRF24_PA_MAX }
enum	nrf24_datarate_e { NRF24_250KBPS = 0, NRF24_1MBPS, NRF24_2MBPS }
enum	nrf24_crc_mode_e { NRF24_NO_CRC = 0, NRF24_CRC_8BIT, NRF24_CRC_16BIT }

Functions
void	nRF24_Init (nrf24_t *nrf_object)
void	nRF24_OpenRxPipe (nrf24_t *nrf_object, uint8_t pipenum, uint64_t address)
void	nRF24_OpenTxPipe (nrf24_t *nrf_object, uint64_t address)
void	nRF24_EventHandler (nrf24_t *nrf_object)
void	nRF24_StartListening (nrf24_t *nrf_object)
void	nRF24_Standby (nrf24_t *nrf_object)
void	nRF24_WriteReg (nrf24_t *nrf_object, uint8_t reg_address, uint8_t value)
void	nRF24_WriteMultReg (nrf24_t *nrf_object, uint8_t reg_address, uint8_t *data_ptr, uint8_t length)
uint8_t	nRF24_ReadReg (nrf24_t *nrf_object, uint8_t reg_address)
uint8_t	nRF24_GetPayloadLength (nrf24_t *nrf_object)
void	nRF24_Write (nrf24_t *nrf_object, uint8_t *buf, uint8_t length)
void	nRF24_Read (nrf24_t *nrf_object, uint8_t *buf, uint8_t length)
void	nRF24_WriteAck (nrf24_t *nrf_object, uint8_t *buf, uint8_t length, uint8_t pipe)
void	nRF24_SetPowerAmplificationLevel (nrf24_t *nrf_object, nrf24_pa_level_e level)
void	nRF24_SetDataRate (nrf24_t *nrf_object, nrf24_datarate_e rate)
void	nRF24_SetCRCMode (nrf24_t *nrf_object, nrf24_crc_mode_e mode)
void	nRF24_SetChannel (nrf24_t *nrf_object, uint8_t channel)
void	nRF24_SetActive (nrf24_t *nrf_object, uint8_t active)
void	nRF24_SetRetries (nrf24_t *nrf_object, uint8_t delay, uint8_t count)
void	nRF24_FlushRx (nrf24_t *nrf_object)
void	nRF24_FlushTx (nrf24_t *nrf_object)

Detailed Description

This module provides an interface with the nRF24L01+ built on the SPI module.

Macro Definition Documentation

#define nRF24_ISR

(

nrf_object

)

Task_Queue( (task_t)nRF24_EventHandler, nrf_object)

Typedef Documentation

typedef struct nrf24_radio_t nrf24_t

TODO: Make this library work with big endian devices

Enumeration Type Documentation

enum nrf24_crc_mode_e

Enumerator
NRF24_NO_CRC
NRF24_CRC_8BIT
NRF24_CRC_16BIT

enum nrf24_datarate_e

Enumerator
NRF24_250KBPS
NRF24_1MBPS
NRF24_2MBPS

enum nrf24_pa_level_e

Enumerator
NRF24_PA_LOW
NRF24_PA_MID
NRF24_PA_HIGH
NRF24_PA_MAX

Function Documentation

void nRF24_EventHandler

(

nrf24_t *

nrf_object

)

Use nRF24_ISR() in the interrupt service routine that detects high to low changes for the IRQ pin.

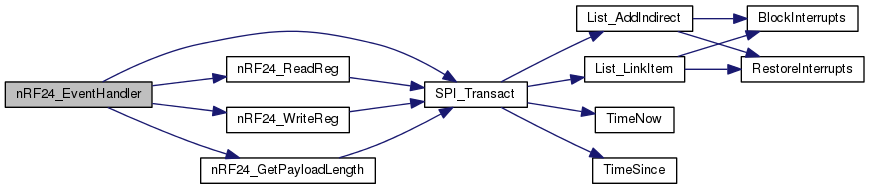

Here is the call graph for this function:

void nRF24_FlushRx

(

nrf24_t *

nrf_object

)

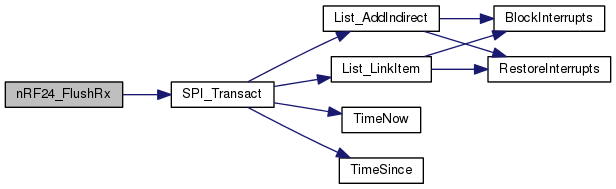

Here is the call graph for this function:

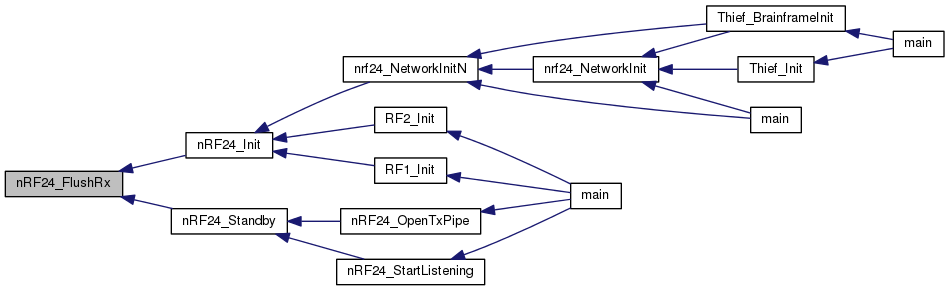

Here is the caller graph for this function:

void nRF24_FlushTx

(

nrf24_t *

nrf_object

)

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t nRF24_GetPayloadLength

(

nrf24_t *

nrf_object

)

Get the length of the payload received

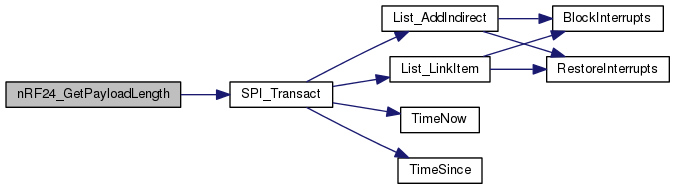

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_Init

(

nrf24_t *

nrf_object

)

Initialize nRF24L01+ module with default settings

SPI channel should already be initialized before calling nRF24_Init().

Default Settings:

• Max Retries 15
• Power Amplification Max
• Data Rate 2Mbps
• 16-bit CRC
• Channel 76
• Dynamic Payload Length Feature
• Ack Payload Feature
• Dynamic Ack Payload Feature (allow empty acks)
• Auto Ack Enabled on All Pipes
• Dynamic Payload Enabled for All Pipes
• 5-byte Address Width

Example Usage:

nrf24_t RF1; // make sure this isn't on the stack
//...
RF1.ce = RF1_CE; // where RF1_CE is a function to set ChipEnable
RF1.csn = RF1_CSN; // where RF1_CSN is a function to set ~ChipSelect
RF1.spi_channel = 2;
RF1.ReceivedPayload = RF1_RxPayloadHandler;
RF1.AckPayloadReceived = RF1_AckPayloadHandler;
RF1.AckReceived = RF1_AckReceivedHandler;
RF1.MaxRetriesHit = RF1_MaxRetriesHandler;

nRF24_Init(&RF1);

Parameters

nrf_object

Pointer to nfr24_t object.

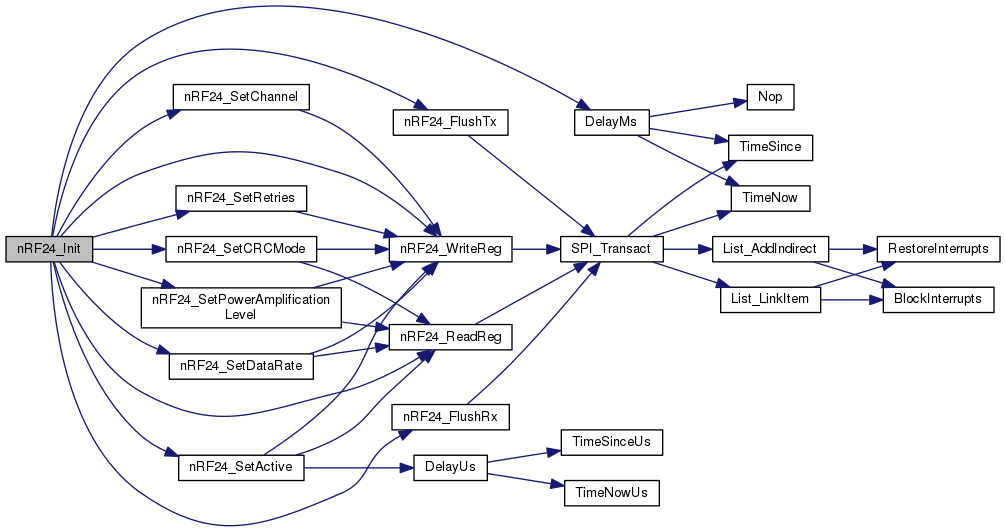

Here is the call graph for this function:

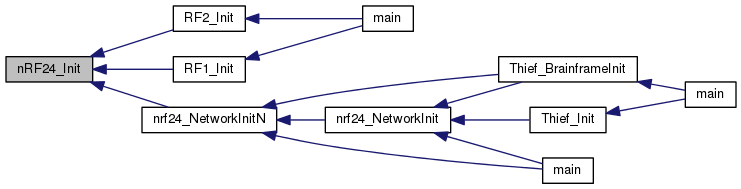

Here is the caller graph for this function:

void nRF24_OpenRxPipe	(	nrf24_t *	nrf_object,
		uint8_t	pipenum,
		uint64_t	address
	)

Open a RX pipe for a specific address

Note: for pipes 2-5 only the LSB of the address is used

Parameters

nrf_object	Pointer to nfr24_t object.
pipenum	Pipe index to use (0-5)
address	address to receive from

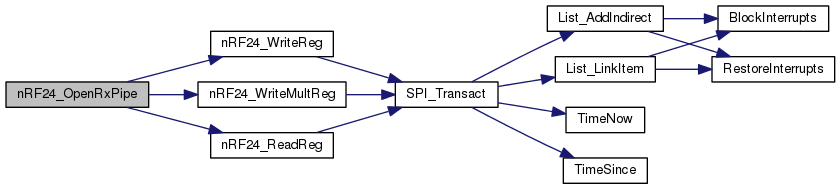

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_OpenTxPipe	(	nrf24_t *	nrf_object,
		uint64_t	address
	)

Open a TX pipe for a specific address

Parameters

nrf_object	Pointer to nfr24_t object.
address	address to transmit on

TODO: We may need to add this back in. I am unsure how using dynamic payload effects the use of the payload length registers

nRF24_WriteReg(nrf_object, RX_PW_P0, min(payload_size,max_payload_size));

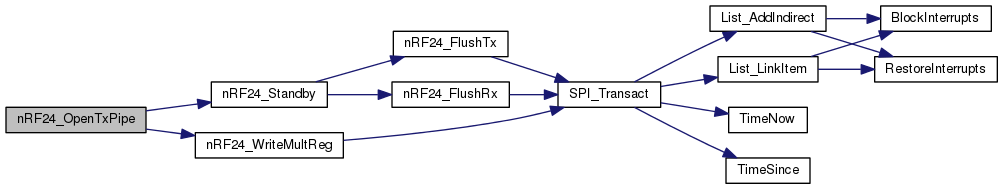

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_Read	(	nrf24_t *	nrf_object,
		uint8_t *	buf,
		uint8_t	length
	)

Read the received message

uint8_t nRF24_ReadReg	(	nrf24_t *	nrf_object,
		uint8_t	reg_address
	)

Here is the call graph for this function:

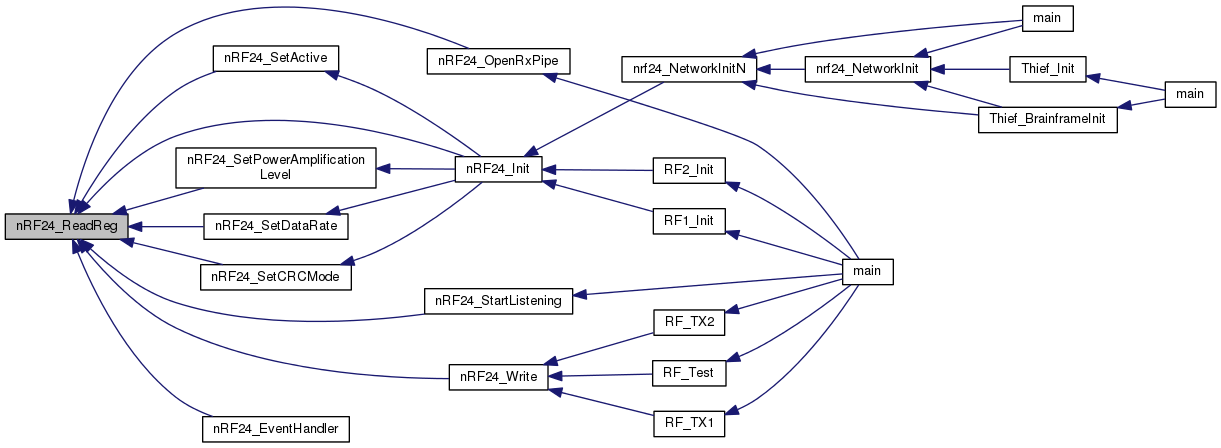

Here is the caller graph for this function:

void nRF24_SetActive	(	nrf24_t *	nrf_object,
		uint8_t	active
	)

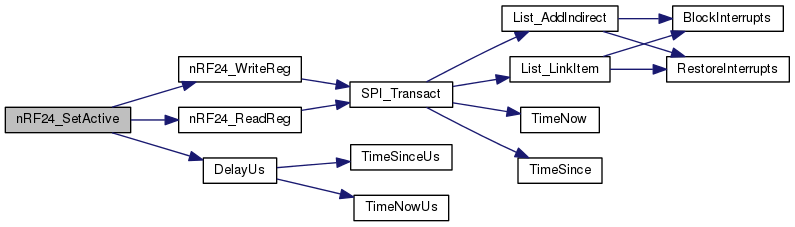

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_SetChannel	(	nrf24_t *	nrf_object,
		uint8_t	channel
	)

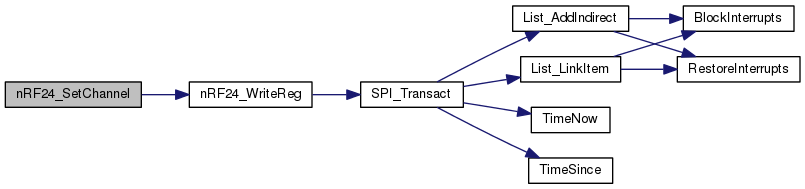

Here is the call graph for this function:

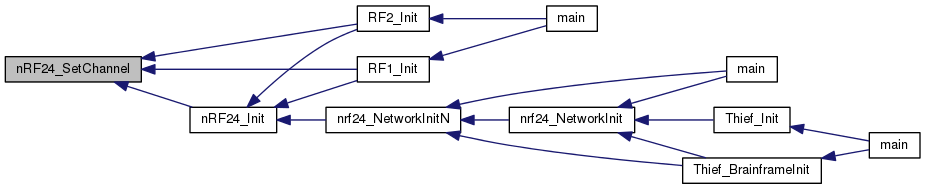

Here is the caller graph for this function:

void nRF24_SetCRCMode	(	nrf24_t *	nrf_object,
		nrf24_crc_mode_e	mode
	)

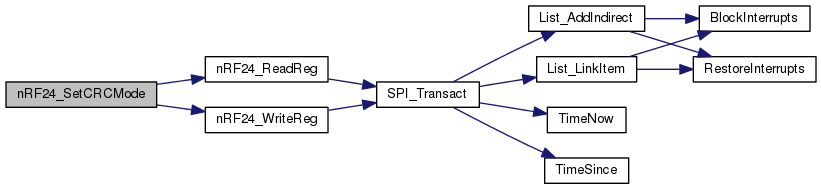

Here is the call graph for this function:

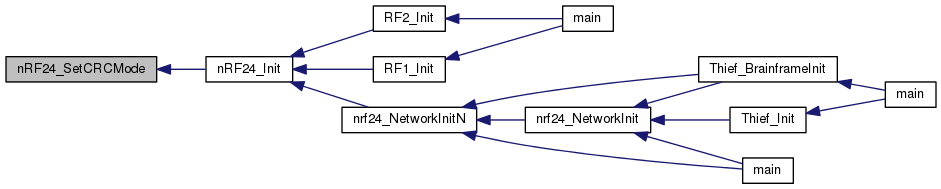

Here is the caller graph for this function:

void nRF24_SetDataRate	(	nrf24_t *	nrf_object,
		nrf24_datarate_e	rate
	)

Here is the call graph for this function:

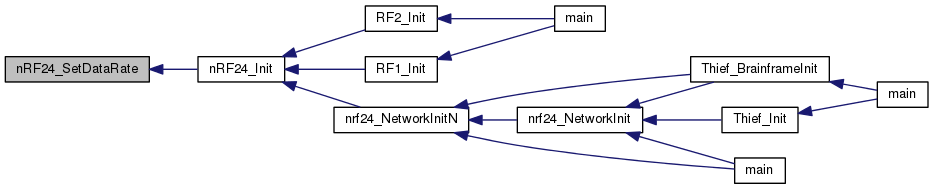

Here is the caller graph for this function:

void nRF24_SetPowerAmplificationLevel	(	nrf24_t *	nrf_object,
		nrf24_pa_level_e	level
	)

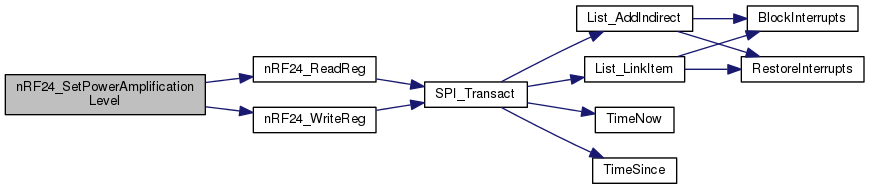

Here is the call graph for this function:

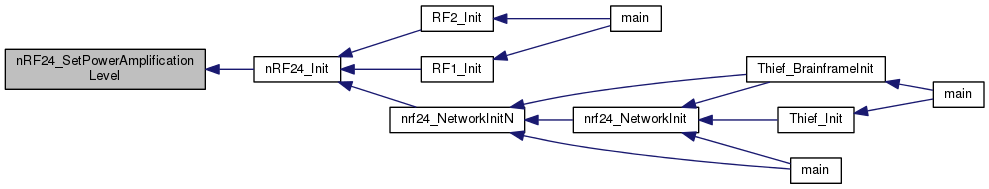

Here is the caller graph for this function:

void nRF24_SetRetries	(	nrf24_t *	nrf_object,
		uint8_t	delay,
		uint8_t	count
	)

Parameters

delay	delay before retransmit attempt, actual delay = 250us + delay*250us where delay is from 0-15
count	retransmit count before triggering max retries interrupt, 0-15 where 0 is no retries and 15 is 15 retries

Here is the call graph for this function:

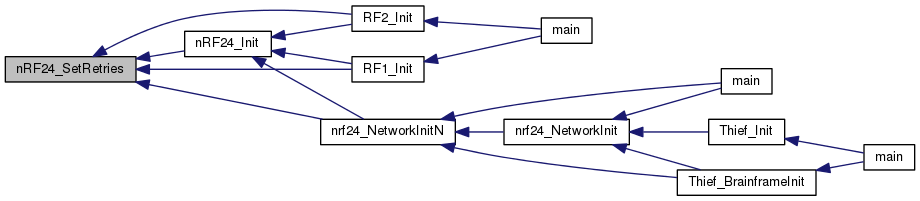

Here is the caller graph for this function:

void nRF24_Standby

(

nrf24_t *

nrf_object

)

Disable the nRF24 chip and standby

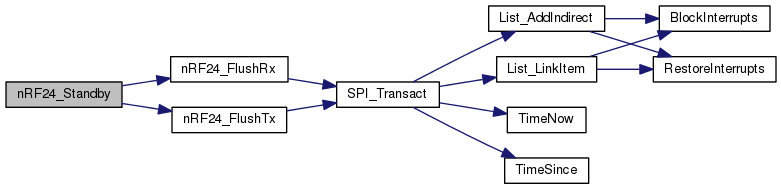

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_StartListening

(

nrf24_t *

nrf_object

)

Start listening on primary RX node

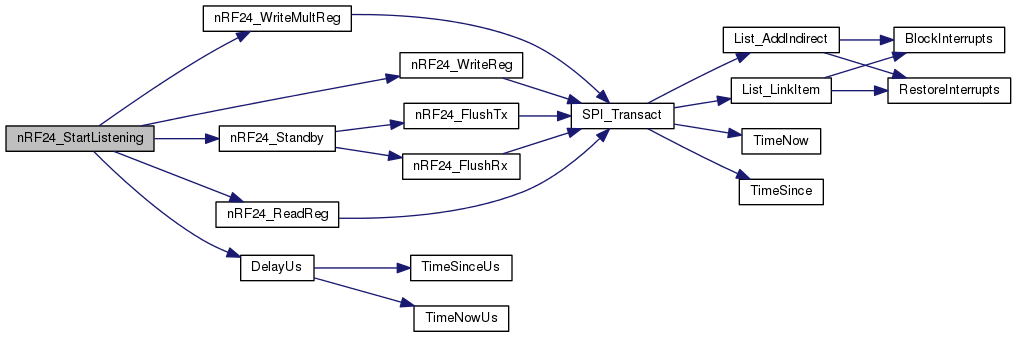

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_Write	(	nrf24_t *	nrf_object,
		uint8_t *	buf,
		uint8_t	length
	)

Send a message from a primary TX node

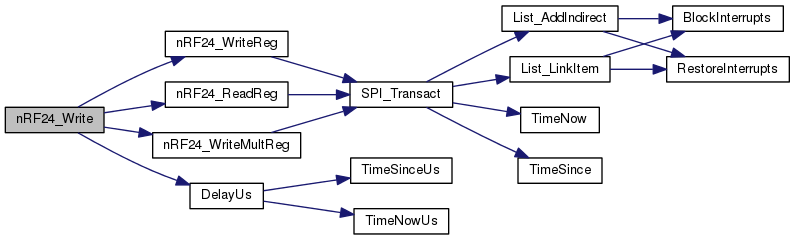

Here is the call graph for this function:

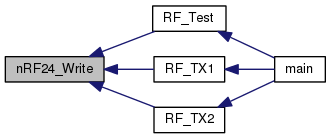

Here is the caller graph for this function:

void nRF24_WriteAck	(	nrf24_t *	nrf_object,
		uint8_t *	buf,
		uint8_t	length,
		uint8_t	pipe
	)

Send a message in an ack response payload from a primary RX node

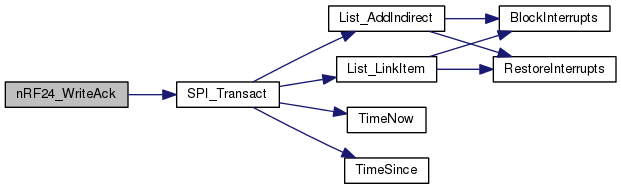

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_WriteMultReg	(	nrf24_t *	nrf_object,
		uint8_t	reg_address,
		uint8_t *	data_ptr,
		uint8_t	length
	)

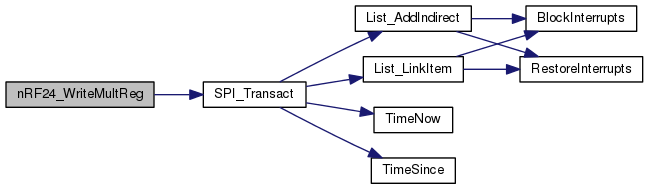

Here is the call graph for this function:

Here is the caller graph for this function:

void nRF24_WriteReg	(	nrf24_t *	nrf_object,
		uint8_t	reg_address,
		uint8_t	value
	)

Here is the call graph for this function:

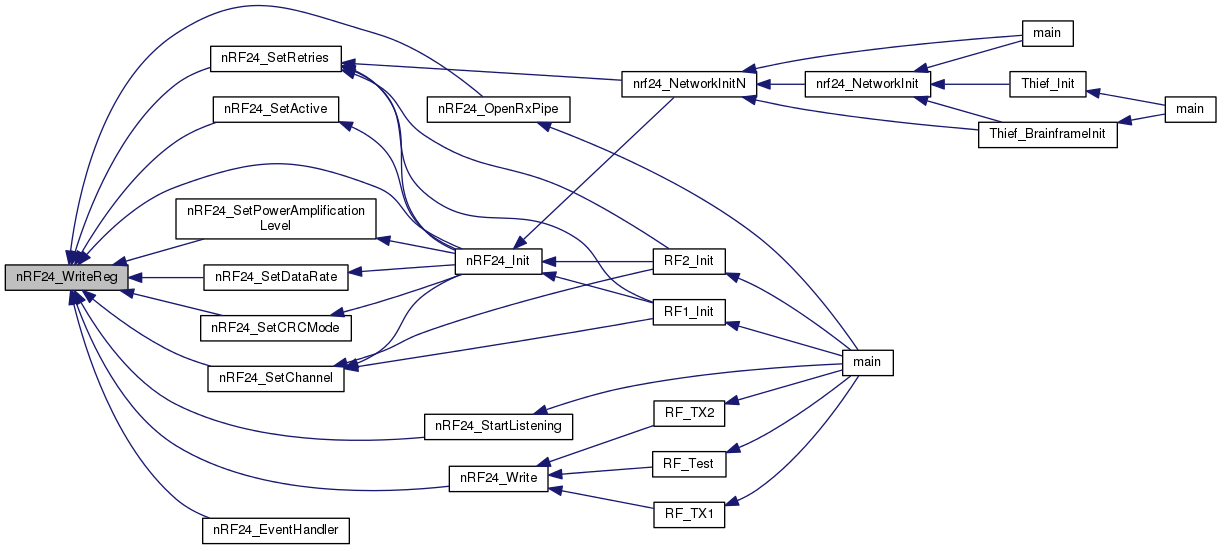

Here is the caller graph for this function:
