Collaboration diagram for SPI Module:

Modules
	SPI Hardware Abstraction Layer for MSP432P401R

Data Structures
struct	spi_settings_t
	spi settings structure More...

struct	spi_transaction
	spi transaction structure More...

Macros
#define	SPI_MAX_SIZE 8
	max length More...

#define	SPI_MAX_TRANSACTIONS 4
	max queued transactions More...

Typedefs
typedef struct spi_settings_t	spi_settings_t
	spi settings structure More...

typedef struct spi_transaction	spi_transaction_t
	spi transaction typedef More...

Functions
void	SPI_Init (spi_settings_t *spi_settings)
	initialize a SPI channel More...

int8_t	SPI_Transact (spi_transaction_t *transaction)
	send a SPI transaction More...

void	SPI_ISR (uint8_t channel)
	Interrupt service routine to be called from the HAL. More...

void	hal_SPI_Init (spi_settings_t *settings)

void	hal_SPI_Enable (uint8_t channel)

void	hal_SPI_Disable (uint8_t channel)

uint8_t	hal_SPI_SpaceAvailable (uint8_t channel)

uint8_t	hal_SPI_DataAvailable (uint8_t channel)

void	hal_SPI_ClearRxIF (uint8_t channel)

void	hal_SPI_ClearTxIF (uint8_t channel)

void	hal_SPI_EnableRxInterrupt (uint8_t channel)

void	hal_SPI_EnableTxInterrupt (uint8_t channel)

void	hal_SPI_DisableRxInterrupt (uint8_t channel)

void	hal_SPI_DisableTxInterrupt (uint8_t channel)

uint8_t	hal_SPI_TxIntStatus (uint8_t channel)

uint8_t	hal_SPI_RxIntStatus (uint8_t channel)

uint8_t	hal_SPI_IsTxIntEnabled (uint8_t channel)

uint8_t	hal_SPI_RxByte (uint8_t channel)

void	hal_SPI_TxByte (uint8_t channel, uint8_t b)

uint8_t	hal_SPI_OverrunError (uint8_t channel)

Detailed Description

File: spi.h Author: Anthony Merlino

Transactional Master SPI module capable of bi-directional data transfer in a single transaction. Support blocking and non-blocking modes.

Currently supports 8-bit mode only.

Created on February 24, 2015, 11:03 PM

Macro Definition Documentation

#define SPI_MAX_SIZE 8

max length

#define SPI_MAX_TRANSACTIONS 4

max queued transactions

Typedef Documentation

typedef struct spi_settings_t spi_settings_t

spi settings structure

typedef struct spi_transaction spi_transaction_t

spi transaction typedef

Function Documentation

void hal_SPI_ClearRxIF ( uint8_t channel )

Clear SPI receive interrupt flag

Parameters

channel SPI channel number

Here is the caller graph for this function:

void hal_SPI_ClearTxIF ( uint8_t channel )

Clear SPI transmit interrupt flag

Parameters

channel SPI channel number

Here is the caller graph for this function:

uint8_t hal_SPI_DataAvailable ( uint8_t channel )

Get data available status of SPI receive buffer

Parameters

channel SPI channel number

Returns: 0 if no data is available in receive buffer, non-zero if data is available

Here is the caller graph for this function:

void hal_SPI_Disable ( uint8_t channel )

Disable the SPI peripheral

Parameters

channel SPI channel number

Here is the caller graph for this function:

void hal_SPI_DisableRxInterrupt ( uint8_t channel )

Disable SPI receive interrupts

Parameters

channel SPI channel number

Here is the caller graph for this function:

void hal_SPI_DisableTxInterrupt ( uint8_t channel )

Disable SPI transmit interrupts

Parameters

channel SPI channel number

Here is the caller graph for this function:

void hal_SPI_Enable ( uint8_t channel )

Enable the SPI peripheral

Parameters

channel SPI channel number

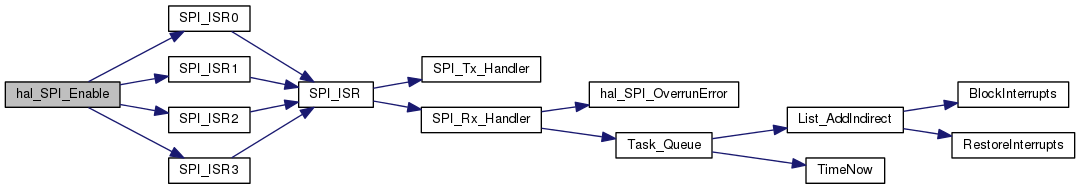

Here is the call graph for this function:

Here is the caller graph for this function:

void hal_SPI_EnableRxInterrupt ( uint8_t channel )

Enable SPI receive interrupts

Parameters

channel SPI channel number

Here is the caller graph for this function:

void hal_SPI_EnableTxInterrupt ( uint8_t channel )

Enable SPI transmit interrupts

Parameters

channel SPI channel number

void hal_SPI_Init ( spi_settings_t * settings )

Initialize the SPI peripheral given the settings structure

Note: the developer of hal_spi can define hal_spi_settings_t to have whatever is required for implementing SPI on the target processor.

Parameters

settings pointer to spi_settings_structure.

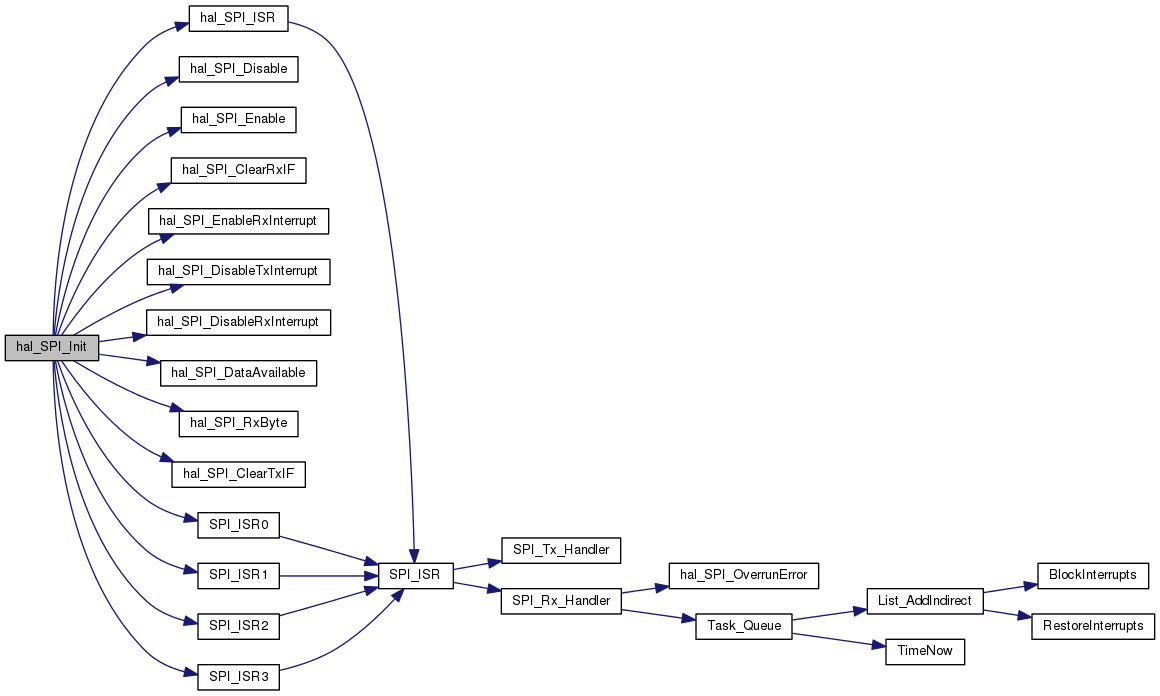

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t hal_SPI_IsTxIntEnabled ( uint8_t channel )

Get enable status of SPI transmit interrupt

Parameters

channel SPI channel number

uint8_t hal_SPI_OverrunError ( uint8_t channel )

Check if buffer overrrun has occured.

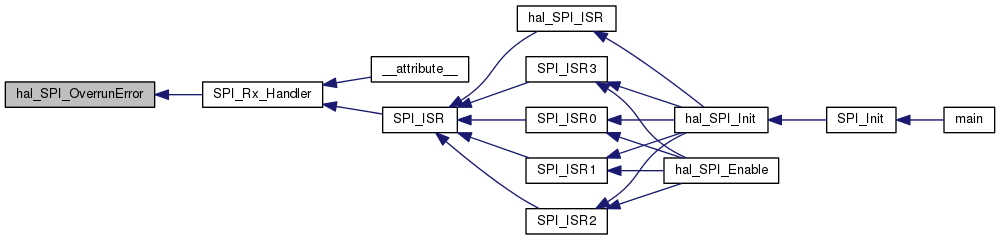

Here is the caller graph for this function:

uint8_t hal_SPI_RxByte ( uint8_t channel )

Get byte from SPI receive buffer / register

Parameters

channel SPI channel number

Returns: data read from receive buffer / register

Here is the caller graph for this function:

uint8_t hal_SPI_RxIntStatus ( uint8_t channel )

Get status of SPI receive interrupt flag

Parameters

channel SPI channel number

Here is the call graph for this function:

uint8_t hal_SPI_SpaceAvailable ( uint8_t channel )

Get space available status of SPI transmit buffer

Parameters

channel SPI channel number

Returns: Return 0 if no space available in transmit buffer, non-zero if space is available

Here is the caller graph for this function:

void hal_SPI_TxByte	(	uint8_t	channel,
		uint8_t	b
	)

Write byte to SPI transmit buffer / register

Parameters

channel	SPI channel number
byte	to write

uint8_t hal_SPI_TxIntStatus ( uint8_t channel )

Get status of SPI transmit interrupt flag

Parameters

channel SPI channel number

Here is the call graph for this function:

void SPI_Init ( spi_settings_t * spi_settings )

initialize a SPI channel

To initialize a SPI module a spi_setting_t struct must be configured with the desired settings and then passed in by reference to this function.

Example usage:

spi_settings_t spi_settings;
spi_settings.channel = 1;
spi_settings.bit_rate = 100000;
// configure spi_settings.hal_settings as required for the target processor
spi_settings.mode = 0;
SPI_Init(&spi_settings);

Parameters

spi_settings pointer to spi_settings_t struct.

Here is the call graph for this function:

Here is the caller graph for this function:

void SPI_ISR ( uint8_t channel )

Interrupt service routine to be called from the HAL.

Parameters

channel SPI channel

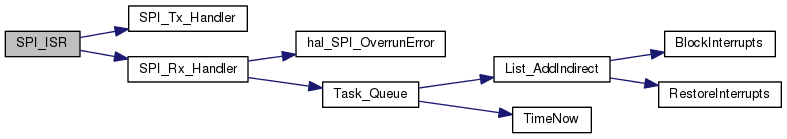

Here is the call graph for this function:

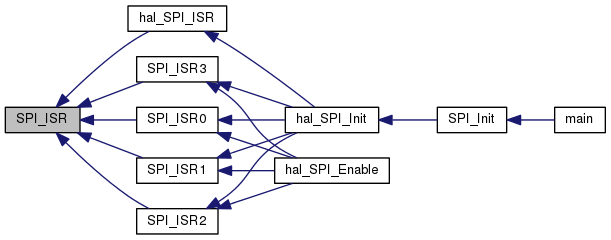

Here is the caller graph for this function:

int8_t SPI_Transact ( spi_transaction_t * transaction )

send a SPI transaction

When configuring the SPI transaction the user must specify:

transaction.flags.channel The SPI channel to use
transaction.flags.blocking Whether or not to use blocking mode
transaction.cs_control A pointer to a chip select function
transaction.writeLength How many bytes to write
transaction.readDelay How many bytes to delay before saving read data
transaction.readLength How many bytes to read
transaction.data Initialize data in array to write (if reading and writing simultaneously then write data will be overwritten with read data after it is written).

Usage Example:

void Channel1ChipSelect(uint8_t cs) {
    // assuming CS_PIN_1 is defined as an output register somewhere
    CS_PIN_1 = cs ? 1 : 0;
}
//...
// write two bytes, receive the second byte through the fifth byte
spi_transaction_t transaction;
transaction.flags.channel = 1;
transaction.flags.blocking = 1;
transaction.cs_control = Channel1ChipSelect;
transaction.writeLength = 2;
transaction.readLength = 4;
transaction.readDelay = 1;
transaction.data[0] = 0x20;
transaction.data[1] = 0x85;
SPI_Transact(&transaction);
// at this point transaction.data[1] through transaction.data[4] contain the data read

Parameters

transaction pointer to spi_transaction_t structure

Warning: Not interrupt safe

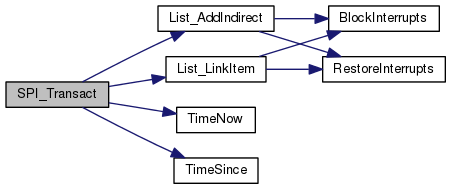

Here is the call graph for this function:

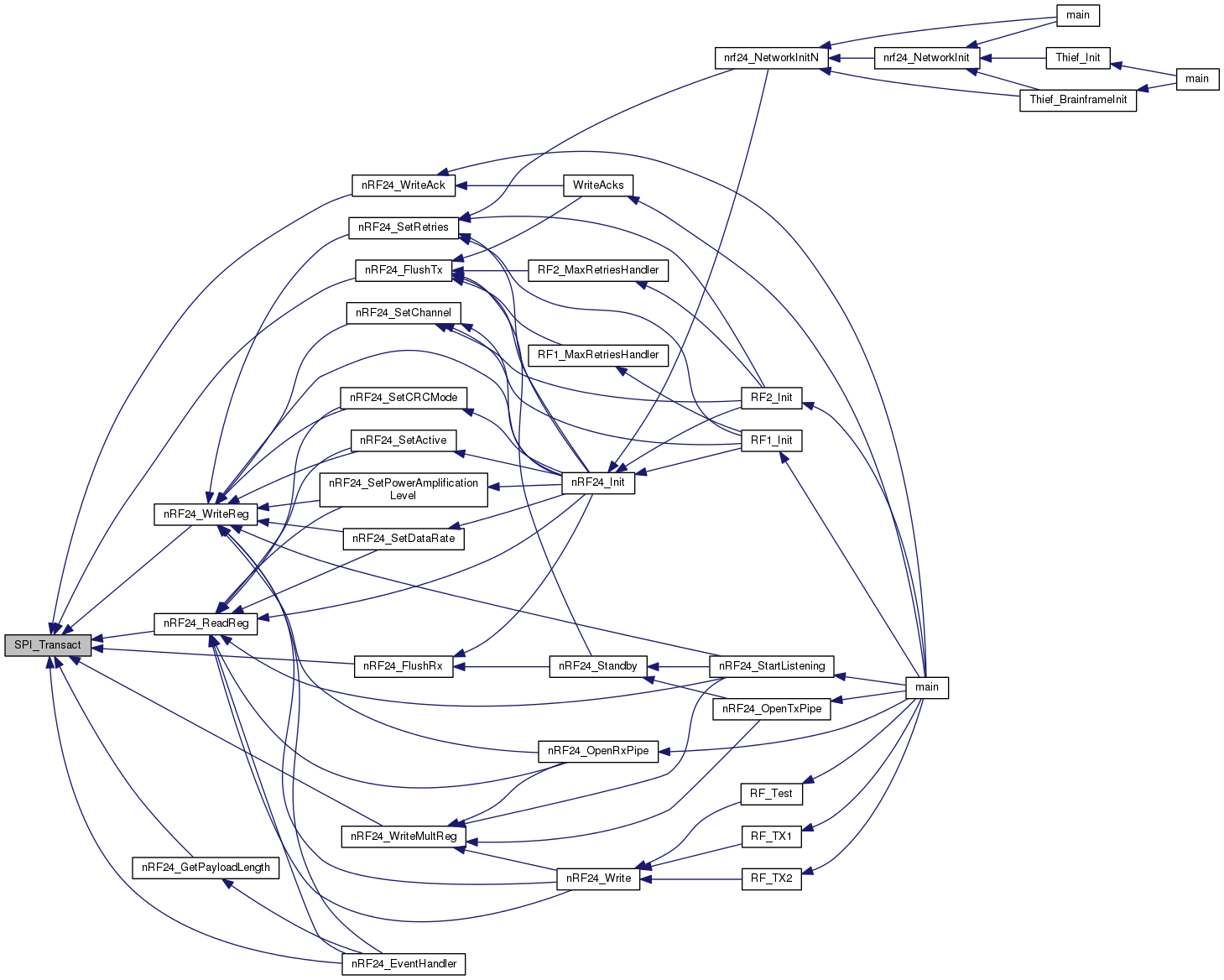

Here is the caller graph for this function:
