#include "project_settings.h"
#include <stdint.h>
#include "timing.h"
#include "nrf24.h"

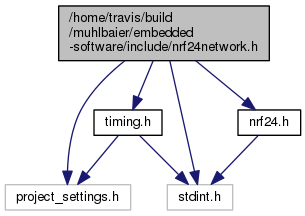

Include dependency graph for nrf24network.h:

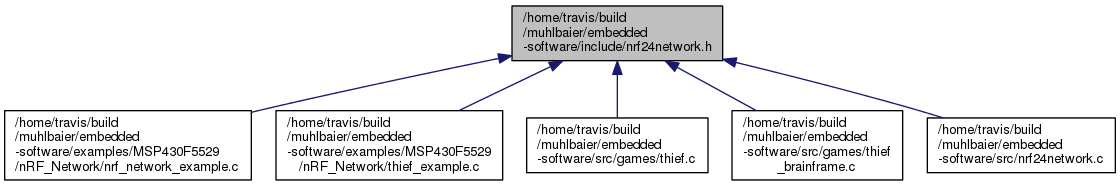

This graph shows which files directly or indirectly include this file:

Macros
#define	NRF24_CHANNEL_BRANCH_1 30

#define	NRF24_CHANNEL_BRANCH_2 34

#define	NRF24_CHANNEL_BRANCH_3 38

#define	NRF24_CHANNEL_BRANCH_4 42

#define	NRF24_CHANNEL_BRANCH_5 46

#define	NRF24_CHANNEL_BRANCH_6 50

#define	NRF24_ADDRESS_MASK 0x6C6C6C7800

#define	NRF24_MIN_WINDOW_MS 8

#define	NRF24_BRANCH_WINDOW_MS 7

#define	NRF24_TICK_MS 2

#define	NRF24_MISSING_NODE_TIMEOUT 100

#define	NRFNET_MSG_BUFFER_LENGTH 16

#define	nrf24_NetworkISRHandlerN(net) nRF24_ISR(&net.radio)

Typedefs
typedef void(*	nrf24_handler_fn_t )(uint8_t *data, uint8_t len, uint8_t from)

typedef struct nrfnet_s	nrfnet_t

Enumerations
enum	nrf24_msg_id { SYSTEM_MSG = 0, CONTROL_MSG, SENSOR_MSG, CHAT_MSG, TEST_MSG, KILL_MSG, THIEF_MSG, LAST_MSG_ID }

enum	nrf24_system_msg { NULL_MSG = 0, PING_MSG, PING_RESPONSE_MSG, SPAM_MSG }

enum	nrf24_control_msg { ONBOARD_LED, LINEAR_ACTUATOR, LAST_CONTROL_ID }

enum	nrf24_sensor_msg { TEMPERATURE_SENSOR, LAST_SENSOR_ID }

enum	nrf24_thief_msg { ARM_MSG, DISARM_MSG, TRIP_MSG, ACCESS_MSG, ERROR_MSG, DIFFICULTY_MSG, LAST_THIEF_ID }

enum	nrf24_address { MASTER = 0x00, SCRUM_PUN = 0x08, BALL_TRAP, TOMS_PAD, NOODLE, MOUSE_TRAP = 0x10, ULTRASONIC = 0x18, DAN, CAM, JAKE, SUPREME = 0x20, BOT, SNEAK, LASER, SIMON, OGLAZERBOIZ = 0x28, OGLAZ2, LOCK_PICK, PIEZO, MIKE = 0x30, SORCE, MALONEY, MUHLBAIER, LAST_ADDRESS, ALL_ALL = 0x3F }

enum	nrfstate_e { NRFNET_INITIALIZED = 0x00, NRFNET_NORMAL_STATE = 0x00, NRFNET_WAITING_FOR_MIN_WINDOW }

enum	nrfrole_e { ROLE_MASTER, ROLE_BRANCH, ROLE_LEAF }

enum	pipe_status_e { CHILD_INITIALIZED, CHILD_ACTIVE, CHILD_MISSING }

Functions
void	nrf24_NetworkInit (void(ce)(uint8_t), void(csn)(uint8_t), uint8_t spi_channel)
	Initialize nRF24 Network Module. More...

void	nrf24_NetworkInitN (nrfnet_t net, void(ce)(uint8_t), void(*csn)(uint8_t), uint8_t spi_channel, uint8_t node)

void	nrf24_RegisterMsgHandler (enum nrf24_msg_id msg_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_RegisterMsgHandlerN (nrfnet_t *net, enum nrf24_msg_id msg_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_SendMsg (uint8_t to, enum nrf24_msg_id msg_id, uint8_t *data, uint8_t len)

void	nrf24_SendMsgN (nrfnet_t net, uint8_t to, enum nrf24_msg_id msg_id, uint8_t data, uint8_t len)

void	nrf24_RegisterControlHandler (enum nrf24_control_msg control_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_RegisterControlHandlerN (nrfnet_t *net, enum nrf24_control_msg control_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_RegisterSensorHandler (enum nrf24_sensor_msg sensor_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_RegisterSensorHandlerN (nrfnet_t *net, enum nrf24_sensor_msg sensor_id, nrf24_handler_fn_t fn_ptr)

void	nrf24_NetworkISRHandler (void)

void	nrf24_Ping (uint8_t to)

char *	NameFromAddress (uint8_t address)

uint8_t	AddressFromName (char *name)

Detailed Description

Data Structures
