Game Management / Helper Module. More...

Data Structures
struct	char_object_t
	Char Object. More...

struct	linked_char_object_t
	Linkable Char Object. More...

struct	player_info_t
	Player info structure to hold player settings. More...

Macros
#define	TRANSPARENT_CHAR '`'
	transparent character for drawing tiles More...

Functions
uint8_t	Game_Register (char name, char description, void(play)(void), void(help)(void))
	Game_Register registers a game by adding it to the games[] array. More...

void	Game_RegisterCallback (uint8_t game_id, void(callback)(int argc, char argv[]))

void	Game_RegisterHighscoreCallback (uint8_t game_id, void(*callback)(void))

void	Game_Log (uint8_t game_id, char *str,...)

void	Game_EnableMultiPlayer (uint8_t game_id, uint8_t num)

void	Game_RegisterPlayer1Receiver (void(*rx)(uint8_t))

void	Game_RegisterPlayer2Receiver (void(*rx)(uint8_t))
	Register Player 2 UART Channel. More...

void	Game_UnregisterPlayer1Receiver (void(*rx)(uint8_t))
	Unregister Player 1 UART Channel receiver. More...

void	Game_UnregisterPlayer2Receiver (void(*rx)(uint8_t))
	Unregister Player 2 UART Channel receiver. More...

void	Game_CharXY (char c, char x, char y)
	Write a character to a coordinate of the terminal. More...

void	Game_Player1CharXY (char c, char x, char y)
	Write a character to a coordinate of the first players terminal. More...

void	Game_Player2CharXY (char c, char x, char y)
	Write a character to a coordinate of the second players terminal. More...

void	Game_CursorXY (char x, char y)
	Cursor Position XY. More...

void	Game_Player1CursorXY (char x, char y)
	Player 1 Cursor Position XY. More...

void	Game_Player2CursorXY (char x, char y)
	Player 2 Cursor Position XY. More...

void	Game_Printf (char *str,...)

void	Game_PrintfXY (char x, char y, char *str,...)
	PrintfXY to screen. More...

void	Game_Player1Printf (char *str,...)

void	Game_Player2Printf (char *str,...)

void	Game_HideCursor (void)
	Hide the cursor for player 1 (and player2 if a two player game) More...

void	Game_ShowCursor (void)
	Show the cursor for player 1 (and player2 if a two player game) More...

void	Game_SetColor (enum term_color color)

void	Game_DrawTile (char *tile[], char x, char y)

void	Game_DrawRect (char x_min, char y_min, char x_max, char y_max)

void	Game_FillRect (char c, char x_min, char y_min, char x_max, char y_max)

void	Game_LinkedChar (char c, char x_first, char y_first, int length, int direction, linked_char_object_t list[])

void	Game_ScrollDown (void)

void	Game_ScrollUp (void)

void	Game_ClearScreen (void)

uint8_t	Game_IsTransmitting (void)

void	Game_Bell (void)

void	Game_GameOver (void)
	let the game management module know that your game is over. More...

Detailed Description

Game Management / Helper Module.

This module helps manage multiple game modules running on a single system as well as implementing several helper functions and structures.

Command list:

$game help (print help info)
$game player1 {name} [color] [skill] (set player1's name [optional color and skill])
$game player2 {name} [color] [skill] (set player2's name [optional color and skill]) name can be up to 15 characters, color can be red, green, yellow, blue, magenta, cyan white, skill can be 0 to 9.
$game {game_name} play (play game_name)
$game {game_name} help (show help for game_name)
$game {game_name} score (show highscores for game_name)
$game {game_name} var1 var2... (call callback for game_name with argc, argv) this can be used to implement changing settings or other more advanced features that are not supported by default.

Notes for developing a game using this game management module:

Create a function to initiate playing the game (i.e. Play()). The Play function will typically initialize the states, score, screen, etc. then register a receiver using Game_RegisterPlayer1Receiver() or Game_RegisterPlayer2Receiver() and it can shedule tasks to run the game etc. When the game is over you should be sure to ungregister the receiver and remove any tasks you still have scheduled.
Create a function to print instructions and other information about your game (i.e. Help())
If you use generic names like Play() or Help() or anything else that someone else might use then declare the function to be static so it is limited in scope to your game file "static void Play(void);"
Create a [game_name]_Init() function which in most cases will be your only public function and should be called from main,
[game_name]_Init() should at a minimum call Game_Register() and can optionally call Game_RegisterCallback() and/or Game_RegisterHighscoreCallback().

Author: Michael Muhlbaier

Todo:

MM add "$game player1 ..." and "$game player2 ..." command support

MM implement transparent character support

Macro Definition Documentation

#define TRANSPARENT_CHAR '`'

transparent character for drawing tiles

Function Documentation

void Game_Bell ( void )

Warning: KC 8/10

This is used to print out an "\a" within the game. The "\a" is used to represent a bell that sounds an alarm

Here is the call graph for this function:

void Game_CharXY	(	char	c,
		char	x,
		char	y
	)

Write a character to a coordinate of the terminal.

Game_CharXY writes a character to the terminal. If there are multiple players it will write to all available terminals

Parameters

c	is the character you wish to print to the terminal
x	defines where to print the character on the x axis
y	defines where to print the character on the y axis

Warning: MM 9/10

Here is the call graph for this function:

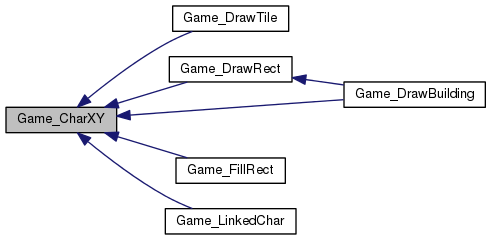

Here is the caller graph for this function:

void Game_ClearScreen ( void )

Todo:: Atharva A. Document this function (when done change this line to "@todo MM check <your names> documentation"

Here is the call graph for this function:

void Game_CursorXY	(	char	x,
		char	y
	)

Cursor Position XY.

Game_CursorXY Moves the cursor to a specified location using the Terminal_CursorXY function based off the number of players.

Parameters

x	is the horizontal coordinate.
y	is the vertical coordinate.

DS 3/25/19

Here is the call graph for this function:

void Game_DrawRect	(	char	x_min,
		char	y_min,
		char	x_max,
		char	y_max
	)

Draws the border of a rectangle using the following character codes: 186, 187, 188, 200, 201, 205

Parameters

x_min	The smallest horizontal location to begin drawing.
y_min	The smallest vertical direction to begin drawing.
x_max	The largest horizontal location to begin drawing.
y_max	The largest vertical direction to begin drawing.

Warning: Remember that the coordinate system starts in the upper left corner and is positive down the screen for the y axis.; GL 10/10

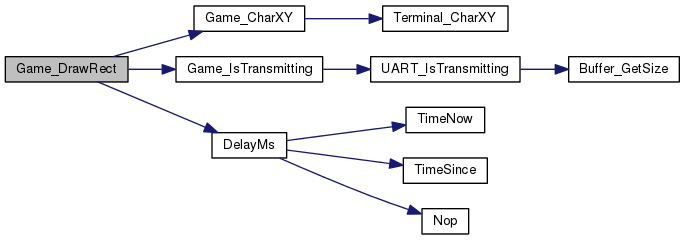

Here is the call graph for this function:

Here is the caller graph for this function:

void Game_DrawTile	(	char *	tile[],
		char	x,
		char	y
	)

Convenience function for writing a tile (2D array of characters) to the screen at a specified X, Y coordinate. This function maps characters in the beginning of the array to the top of the screen and the end to a lower portion of the screen. A null terminated array signals the end of the array.

Parameters

tile	An array of character pointers with null termination
x	The horizontal location to begin drawing the tile
y	The vertical location to begin drawing the tile

Warning: GL 10/10

Here is the call graph for this function:

void Game_EnableMultiPlayer	(	uint8_t	game_id,
		uint8_t	num
	)

Parameters

game_id
num

Todo:: Jon W. Document this function (when done change this line to "@todo MM check <your names> documentation"

void Game_FillRect	(	char	c,
		char	x_min,
		char	y_min,
		char	x_max,
		char	y_max
	)

Warning: AA 10/10

This function can be used to fill up a rectangular area with a passed character

Parameters

c	- Some character
x_min	- minimum value of x
y_min	- minimum value of y
x_max	- maximum value of x
y_max	- maximum value of y Example code: #include <stdio.h> #include <stdlib.h> . . . int main() { . . . Game_FillRect('C', 1, 1, 10, 10) . . . return 0; }

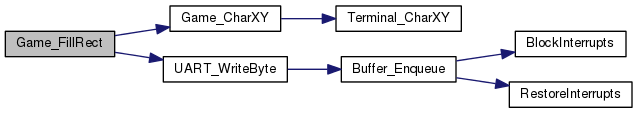

Here is the call graph for this function:

void Game_GameOver ( void )

let the game management module know that your game is over.

This function must be called after your game is over so the game management module can allow users to play again.

Here is the caller graph for this function:

void Game_HideCursor ( void )

Hide the cursor for player 1 (and player2 if a two player game)

Hide the cursor and, if echo is on, turn echo off.

uint8_t Game_IsTransmitting ( void )

Game_IsTransmitting is used to determine whether the game is currently transmitting data to UART This allows the user to check that the game screen is fully updated before allowing the game to advances forward

Returns: 1 if the UART for the specified player is being updated, 0 if no values are being written to UART

Warning: DB 9/10

Here is the call graph for this function:

Here is the caller graph for this function:

void Game_LinkedChar	(	char	c,
		char	x_first,
		char	y_first,
		int	length,
		int	direction,
		linked_char_object_t	list[]
	)

This function creates (initializes) and displays a list of char objects from an uninitialized linked_char_object_t array. Can be used to make walls, multi-char enemies, sub-boundaries, etc.

Parameters

c	- character that will make up nodes of list
x_first	- x position of starting node
y_first	- y position of starting node
length	- length of char list
direction	- determines direction the list will be made from starting node 0 -> up, 1 -> right, 2 -> down, 3 -> left
list[]	- uninitialized linked_char_object_t array

Example code:

linked_char_object_t testing[4]
Game_LinkedChar('*', 5, 5, 4, 0, testing)
output:
 123456789
1
2     *
3     *
4     *
5     *
6
7

//initialize object arrays
linked_char_object_t testing[10];
linked_char_object_t testing1[3];
linked_char_object_t testing2[4];
linked_char_object_t testing3[9];
//call function: creates linked list and prints
Game_LinkedChar('#', 6, 6, 10, 2, testing);
Game_LinkedChar('1', 8, 6, 3, 1, testing1);
Game_LinkedChar('2', 10, 3, 4, 3, testing2);
Game_LinkedChar('3', 5, 15, 9, 0, testing3);
//shows that node values can be changed after list is created
testing[3].c = '%';
Game_CharXY(testing[3].c , testing[3].x , testing[3].y );

Here is the call graph for this function:

void Game_Log	(	uint8_t	game_id,
		char *	str,
			...
	)

Parameters

game_id	ID of game (returned when Game_Register() is called)
str	pointer to null terminated string
...	variable argument list to be used with any replacement flags in the string

Similar to LogMsg() except with the addition of the game name to the message.

Warning: CR 7/10

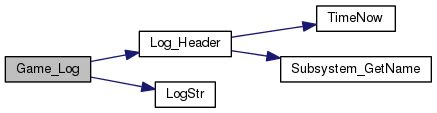

Here is the call graph for this function:

void Game_Player1CharXY	(	char	c,
		char	x,
		char	y
	)

Write a character to a coordinate of the first players terminal.

Game_Player1CharXY writes a character to the first player terminal

Parameters

c	is the character you wish to print to the terminal
x	defines where to print the character on the x axis
y	defines where to print the character on the y axis

Here is the call graph for this function:

void Game_Player1CursorXY	(	char	x,
		char	y
	)

Player 1 Cursor Position XY.

Game_Player1CursorXY Moves the cursor to a specified location using the Terminal_CursorXY function based off the Player1UART.

Parameters

x	is the horizontal coordinate.
y	is the vertical coordinate.

DS 3/25/19

Here is the call graph for this function:

void Game_Player1Printf	(	char *	str,
			...
	)

Parameters

str	pointer to string to be printed (must be null terminated)
...	variable argument list to be used with any replacement flags in the string

Function: Game_Printf(*str)

This function is passed a pointer to a string and prints that string to player 1's terminal using UART_vprintf. The function supports printf style replacement flags.

Warning: TM 9/10

void Game_Player2CharXY	(	char	c,
		char	x,
		char	y
	)

Write a character to a coordinate of the second players terminal.

Game_Player2CharXY writes a character to the second player terminal

Parameters

c	is the character you wish to print to the terminal
x	defines where to print the character on the x axis
y	defines where to print the character on the y axis

Here is the call graph for this function:

void Game_Player2CursorXY	(	char	x,
		char	y
	)

Player 2 Cursor Position XY.

Game_Player2CursorXY Moves the cursor to a specified location using the Terminal_CursorXY function based off the Player1UART.

Parameters

x	is the horizontal coordinate.
y	is the vertical coordinate.

DS 3/25/19

Here is the call graph for this function:

void Game_Player2Printf	(	char *	str,
			...
	)

Sending a Player 2 specific message

Parameters

str	is a string which is to be printed to player 2's screen.
...	variable argument list to be used with any replacement flags in the string

Game_Player2Printf("Your score is: %d", score);

This function is passed a pointer to a string and prints that string to player 2's terminal using UART_vprintf. The function supports printf style replacement flags.

Warning: RT 8/10

void Game_Printf	(	char *	str,
			...
	)

Parameters

str	pointer to string to be printed (must be null terminated)
...	variable argument list to be used with any replacement flags in the string

Function: Game_Printf(*str)

This function is passed a pointer to a string and prints that string to the terminal using UART_vprintf. The function supports printf style replacement flags. Can output messages from multiple UART channels if more than one person is playing.

Warning: TM 9/10

Here is the caller graph for this function:

void Game_PrintfXY	(	char	x,
		char	y,
		char *	str,
			...
	)

PrintfXY to screen.

Game_PrintfXY prints a specified string to a certain location using terminal_cursorXY and Subsystem_printf.

Parameters

x	is the horizontal coordinate.
y	is the vertical coordinate.
*	str points to location of the beginning of the specified string
...	variable argument list to be used with any replacement flags in the string

DS 3/25/19

Here is the call graph for this function:

uint8_t Game_Register	(	char *	name,
		char *	description,
		void(*)(void)	play,
		void(*)(void)	help
	)

Game_Register registers a game by adding it to the games[] array.

Game_Register will take input pointers and copy it onto the corresponding variable pointers in game_t struct. Will also initialize num_players, score, and callback.

Parameters

name	- Pointer to start of character array containing name of game
description	- Pointer to start of character array containing description of game
play	- Pointer to function that initiates playing the game
help	- Pointer to function that displays help info

Returns: returns 0xFF if games[] array is at MAX_GAMES length Otherwise returns index of registered game in games[] array

Here is the call graph for this function:

Here is the caller graph for this function:

void Game_RegisterCallback	(	uint8_t	game_id,
		void()(int argc, char argv[])	callback
	)

This function takes in an id for the game along with the callback, and saves it in the array of games. The index of the array the callback is stored in is the game_id, so this number must be less than the size of the games array.

Parameters

game_id	ID of the game. Also used as the array index.
callback	The callback pointer

Warning: JR 10/10

Here is the caller graph for this function:

void Game_RegisterHighscoreCallback	(	uint8_t	game_id,
		void(*)(void)	callback
	)

Parameters

game_id
callback

Todo:: Andrew R. Document this function (when done change this line to "@todo MM check <your names> documentation"

void Game_RegisterPlayer1Receiver ( void(*)(uint8_t) rx )

Game_RegisterPlayer1Receiver will register the UART char receiver function for player 1

Game_RegisterPlayer1Receiver registers the UART char receiver function for player 1. PLAYER1_UART defines the channel of the UART to be registered.

Parameters

rx	Pointer to UART char receiver function

Warning: Make sure to Game_UnregisterPlayer1Receiver() when game play is over; JWi 10/10

Here is the call graph for this function:

void Game_RegisterPlayer2Receiver ( void(*)(uint8_t) rx )

Register Player 2 UART Channel.

Game_RegisterPlayer2Receiver() registers a second UART channel to be used by a second player. Only use if you game allows a for a second player

Parameters

rx	is a function pointer that calls a function when a character is received in the UART channel

Warning: Make sure to Game_UnregisterPlayer2Receiver() when game play is over; TG 10/10

Here is the call graph for this function:

void Game_ScrollDown ( void )

Todo:: Gerald V. Document this function (when done change this line to "@todo MM check <your names> documentation"

Here is the call graph for this function:

void Game_ScrollUp ( void )

Todo:: Gerald V. Document this function (when done change this line to "@todo MM check <your names> documentation"

Here is the call graph for this function:

void Game_SetColor ( enum term_color color )

This function sets the color for the game and can be either the foreground or the background depending on the user input. If there is a second channel, it will also set the corresponding color specifications to the second UART channel.

Parameters

color is one of the elements within the enumeration defined in terminal.h.

Warning: RT 10/10

Here is the call graph for this function:

void Game_ShowCursor ( void )

Show the cursor for player 1 (and player2 if a two player game)

Show the cursor and, if echo was on, turn echo back on.

void Game_UnregisterPlayer1Receiver ( void(*)(uint8_t) rx )

Unregister Player 1 UART Channel receiver.

Game_UnregisterPlay1Receiver() unregisters the UART channel associated with player 1.

Parameters

rx	is a function pointer that calls a function when a character is received in the UART channel

Warning: TG 10/10

Here is the call graph for this function:

void Game_UnregisterPlayer2Receiver ( void(*)(uint8_t) rx )

Unregister Player 2 UART Channel receiver.

Game_UnregisterPlayer2Receiver() unregisters the UART channel that has been assigned to Player 2.

Parameters

rx	is a function pointer that calls the desired function when the UART channel receives a character.

Warning: MM 9/10

Here is the call graph for this function:

Data Structures

Macros

Functions

Detailed Description

Macro Definition Documentation

Function Documentation
