printf Functionality for Buffer Module

Collaboration diagram for printf Functionality for Buffer Module:

Macros
#define	Buffer_Hex(buf, x)   Buffer_HexN(buf, x, 4)

Functions
void	Buffer_printf (buffer_t *buf, char *str,...)
	printf implementation to char buffer More...
void	Buffer_vprintf (buffer_t *buf, char *str, va_list vars)
	vprintf implementation to char buffer More...
void	Buffer_Binary16 (buffer_t *buf, uint16_t x)
	Push 16 bit binary number to char buffer. More...
void	Buffer_uint16 (buffer_t *buf, uint16_t x)
	Push unsigned integer to char buffer. More...
void	Buffer_int16 (buffer_t *buf, int16_t x)
	Push integer to char buffer. More...
void	Buffer_uint32 (buffer_t *buf, uint32_t x)
	Push unsigned long integer to char buffer. More...
void	Buffer_int32 (buffer_t *buf, int32_t x)
	Push long to char buffer. More...
void	Buffer_Str (buffer_t *buf, char *str)
	Push char array (string) to char buffer. More...
void	Buffer_HexN (buffer_t *buf, uint32_t x, uint8_t n)
	Push 32 bit value to char buffer in hex format. More...
void	Buffer_Float (buffer_t *buf, float x)
	Cheap implementation of float to char buffer. More...

Detailed Description

buffer_printf.h

Created on: Mar 11, 2014 Author: Michael

Version

1.1 changed naming to match stdint and removed 2Buf from function names

1.2 added l for int32 and b for 16-bit binary

Macro Definition Documentation

#define Buffer_Hex	(		buf,
			x
	)		Buffer_HexN(buf, x, 4)

Function Documentation

void Buffer_Binary16	(	buffer_t *	buf,
		uint16_t	x
	)

Push 16 bit binary number to char buffer.

Parameters

[in]	buf	Pointer to char buffer to print to
[in]	x	Unsigned 16-bit integer to convert to text in binary format

Here is the call graph for this function:

void Buffer_Float	(	buffer_t *	buf,
		float	x
	)

Cheap implementation of float to char buffer.

Current implementation will format float as 0.000 by first printing out the integer portion of the float then multiplying the float by 1000 and subtracting the integer portion x 1000 and printing that after the .

Parameters

[in]	buf	Pointer to char buffer to print float to
[in]	x	Float value to convert to text

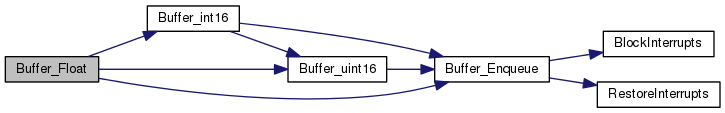

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_HexN	(	buffer_t *	buf,
		uint32_t	x,
		uint8_t	n
	)

Push 32 bit value to char buffer in hex format.

Will push four char's to the buffer, for example: A0F3

Parameters

[in]	buf	Pointer to char buffer to print hex formatted int to
[in]	x	Integer to convert to hex
[in]	n	number of hex characters to print (1-8)

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_int16	(	buffer_t *	buf,
		int16_t	x
	)

Push integer to char buffer.

Note this function is dependent on Push_uint16()

Parameters

[in]	buf	Pointer to char buffer to print int to
[in]	x	Integer to convert to text

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_int32	(	buffer_t *	buf,
		int32_t	x
	)

Push long to char buffer.

Note this function is dependent on Push_uint32()

Parameters

[in]	buf	Pointer to char buffer to print int to
[in]	x	Long to convert to text

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_printf	(	buffer_t *	buf,
		char *	str,
			...
	)

printf implementation to char buffer

Currently supports the following replacement flags:

• c char, replaces flag with specified ASCII char
• b binary, replaces flag with Binary representation See PushBinary16()
• l long, replaces flag with Binary Representation See Push_int32()
• d signed 16 bit integer, replaces flag with specified int. See Push_int16()
• e f or g float, replaces flag with specified float See PushFloat()
• s string, replaces flag with specified null terminated string See PushString()
• u unsigned 16 bit integer, replaces flag with specified unsigned int See Push_uint16()
• x 16 bit hex formated integer, replaces flag with 4 digit hex value. Can accept length format input: %0Lx where L is between 1 and 8. The printf functions expect a 32 bit value only when L is between 5 and 8. For example %08x can be used to print a 32-bit number in hex format. See PushHex()

Example:

buffer_t tx;
...
int16_t x = -1;
char name[] = "Muhlbaier";
Push_printf(&tx, "x = %d, hex - 0x%x, unsigned %u, name = %s);

Would push to the buffer: "x = -1, hex - 0xFFFF, unsigned 65535, name = Muhlbaier"

Parameters

[in]	buf	Pointer to char buffer to print formatted string to
[in]	str	Pointer to null terminated string with replacement flags
[in]	...	Variable argument list corresponding with replacement flags

Here is the call graph for this function:

void Buffer_Str	(	buffer_t *	buf,
		char *	str
	)

Push char array (string) to char buffer.

Parameters

[in]	buf	Pointer to char buffer to print string to
[in]	str	Pointer to null terminated char array (e.g. string)

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_uint16	(	buffer_t *	buf,
		uint16_t	x
	)

Push unsigned integer to char buffer.

Parameters

[in]	buf	Pointer to char buffer to print unsigned int to
[in]	x	Unsigned integer to convert to text

Here is the call graph for this function:

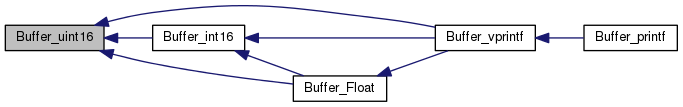

Here is the caller graph for this function:

void Buffer_uint32	(	buffer_t *	buf,
		uint32_t	x
	)

Push unsigned long integer to char buffer.

Parameters

[in]	buf	Pointer to char buffer to print unsigned long to
[in]	x	Unsigned integer to convert to text

Here is the call graph for this function:

Here is the caller graph for this function:

void Buffer_vprintf	(	buffer_t *	buf,
		char *	str,
		va_list	vars
	)

vprintf implementation to char buffer

Same as Push_printf() except with a va_list pointer instead of an actual variable argument list. This allows other functions similar to Push_printf to be implemented.

For example:

void LogStr(char * str, ...) {
   va_list vars;
   va_start(vars, str);
   // use Push_vprintf to log to SUBSYS_UART
   Push_vprintf(SUBSYS_UART, str, vars);
   va_end(vars);
}

See Push_printf()

Parameters

[in]	buf	Pointer to char buffer to print formatted string to
[in]	str	Pointer to null terminated string with replacement flags
[in]	vars	Variable argument list corresponding with replacement flags

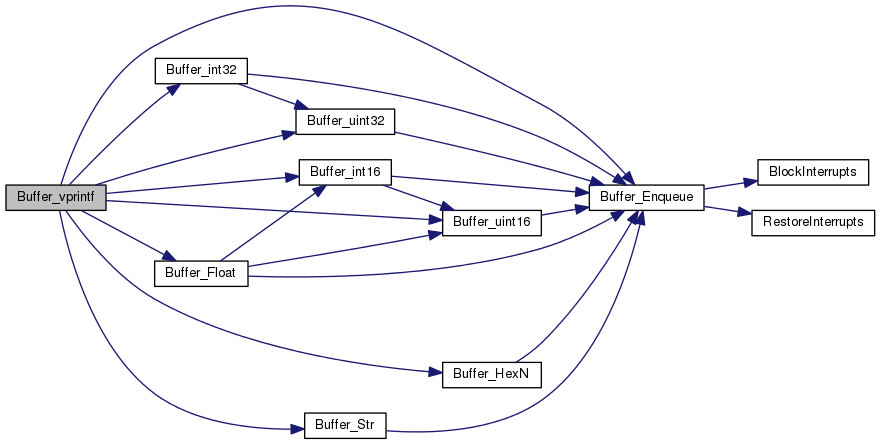

Here is the call graph for this function:

Here is the caller graph for this function:
