Timing module

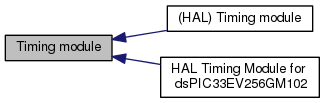

Collaboration diagram for Timing module:

Modules
	HAL Timing Module for dsPIC33EV256GM102
	(HAL) Timing module

Macros
#define	TIME_MAX   0xFFFFFFFFU

Functions
void	Timing_Init (void)
	Initialize the timing module. More...
uint32_t	TimeNow (void)
	Returns the current system time in milliseconds. More...
uint32_t	TimeNowUs (void)
uint32_t	TimeSince (uint32_t t)
	Get the elapsed time. More...
uint32_t	TimeSinceUs (uint32_t t)
void	DelayMs (uint32_t delay)
	Delay a specific number of milliseconds. More...
void	DelayUs (uint32_t us)
void	Timing_Roll (void)

Detailed Description

This module provides some very basic functions to make timing easier. Several other modules rely on the services provided by this module.

The module uses the HAL layer to provide the hardware specific functionality for the timing module. In this module, the hal_timing.c file is included to allow the ISR to access the time variable without externing the variable or making a function call. This allows the ISR to be very efficient.

Macro Definition Documentation

#define TIME_MAX   0xFFFFFFFFU

Max time that can be held.

Function Documentation

void DelayMs

(

uint32_t

delay

)

Delay a specific number of milliseconds.

DelayMs uses TimeNow() and TimeSince() to implement the delay

Parameters

delay

specifies the number of milliseconds to delay

Here is the call graph for this function:

Here is the caller graph for this function:

void DelayUs

(

uint32_t

us

)

Here is the call graph for this function:

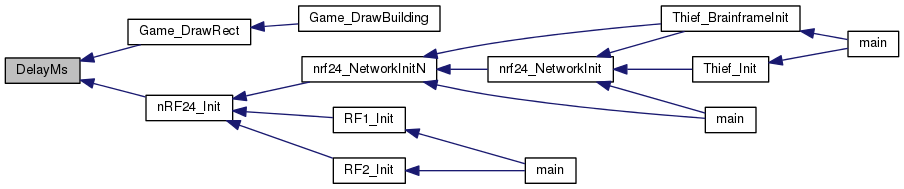

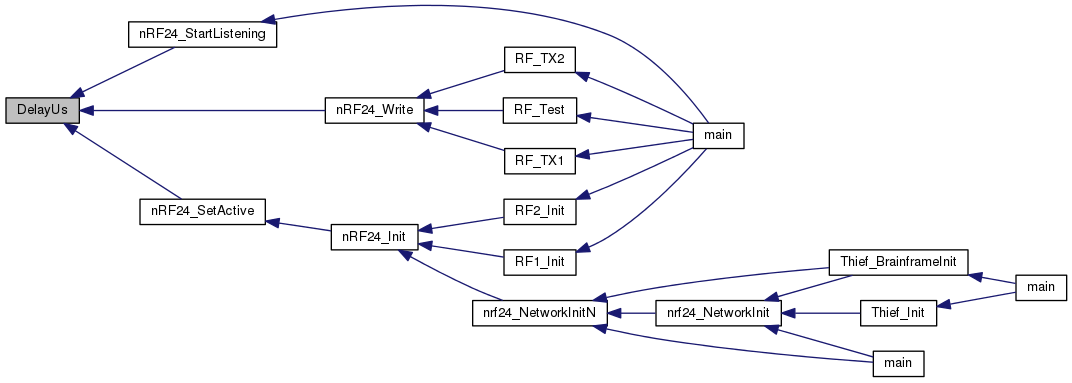

Here is the caller graph for this function:

uint32_t TimeNow

(

void

)

Returns the current system time in milliseconds.

Returns

the current system time in milliseconds

See Also

TimeSince

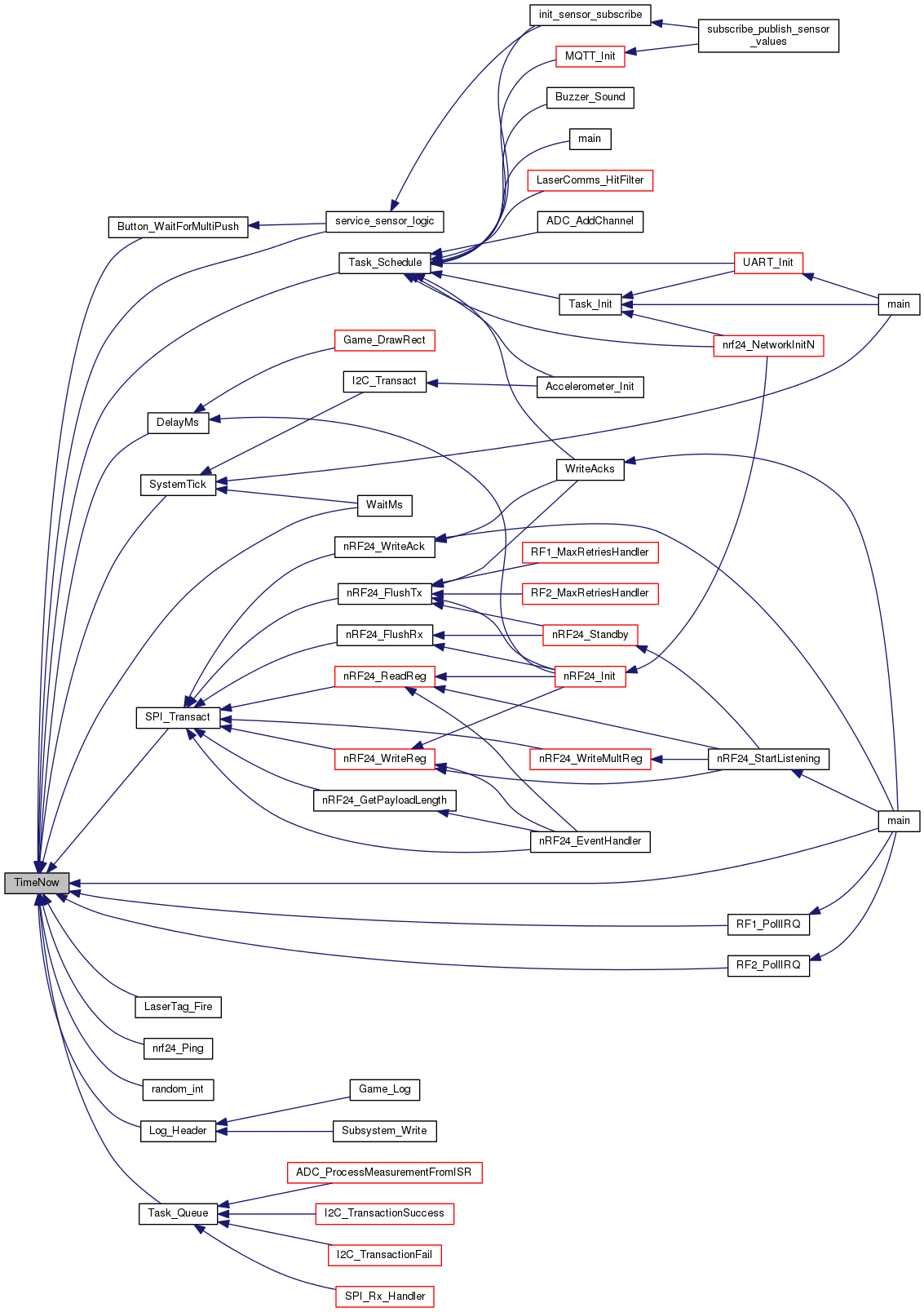

Here is the caller graph for this function:

uint32_t TimeNowUs

(

void

)

Here is the caller graph for this function:

uint32_t TimeSince

(

uint32_t

t

)

Get the elapsed time.

Calculate and return the time elapsed since a given time. Typically used with TimeNow(). See the example usage.

uint32_t t;
t = TimeNow();
while(TimeSince(t) < 5000){
    //Insert code here
}

See Also

TimeNow

Parameters

t	- The time in milliseconds to calculate the elapsed time since

Returns

- The time elapsed since the time given in milliseconds

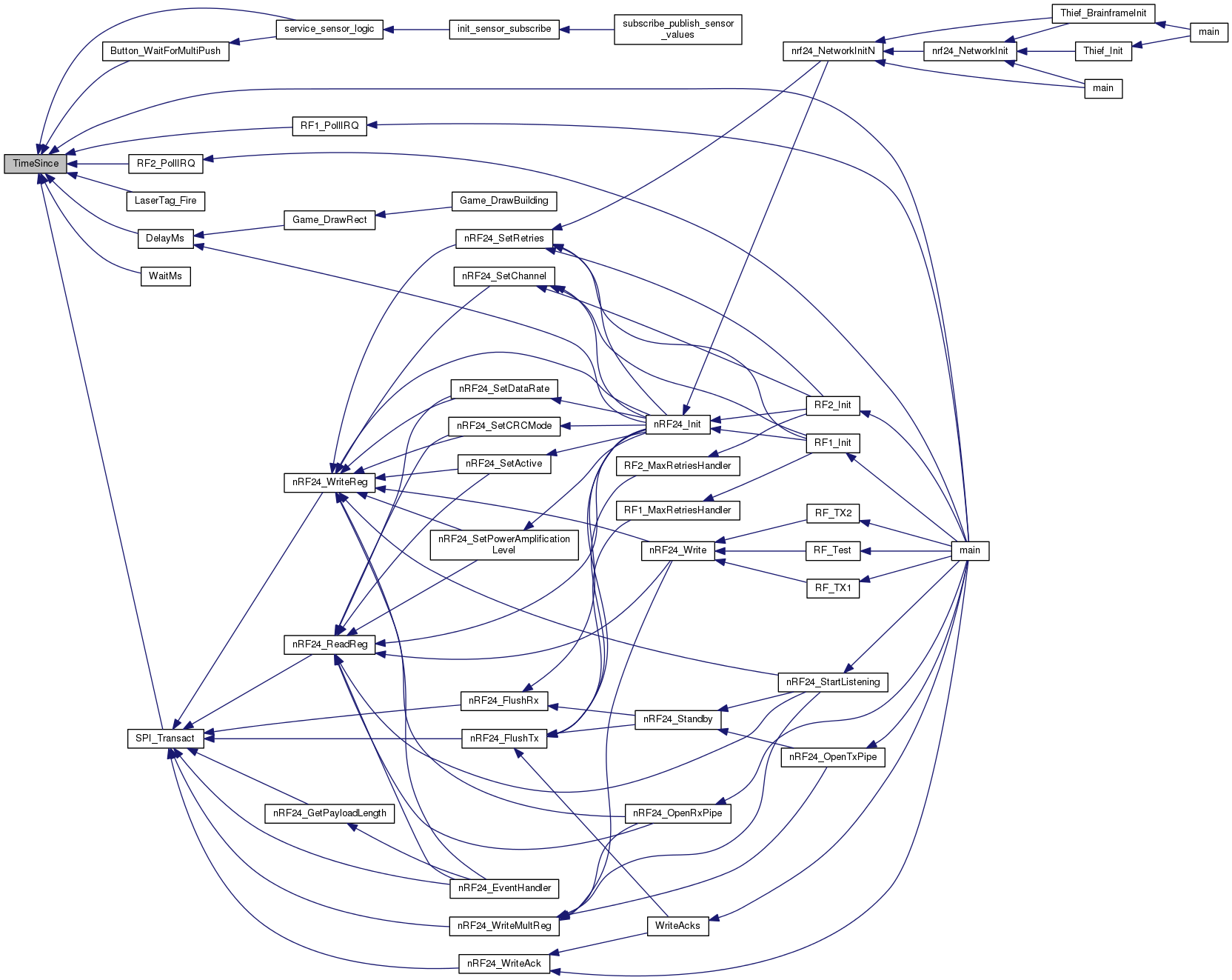

Here is the caller graph for this function:

uint32_t TimeSinceUs

(

uint32_t

t

)

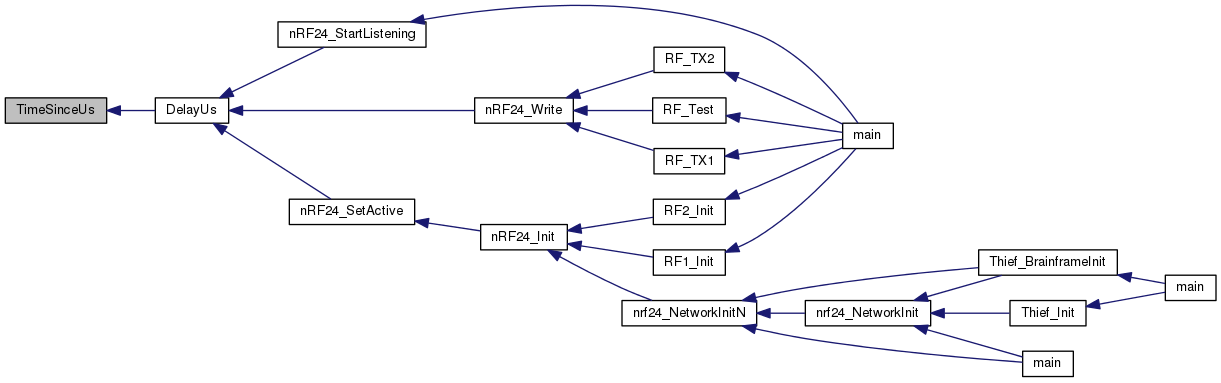

Here is the caller graph for this function:

void Timing_Init

(

void

)

Initialize the timing module.

Call the HAL layer to initialize a timer to interrupt every 1ms. Clears the timing count

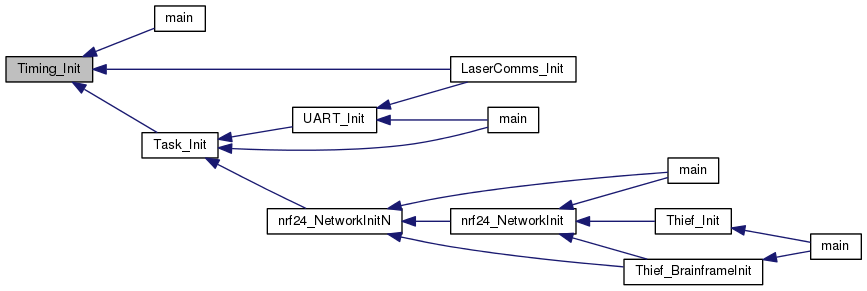

Here is the call graph for this function:

Here is the caller graph for this function:

void Timing_Roll

(

void

)

Reset the system time

Reset system time (e.g. TimeNow() will return 0) and set appropriate rollover times so TimeSince will work properly.

Warning

Timing discrepancies will occur if TimerRoll is called and not called again for the next timer rollover. TimeSince() will result in a shorter time than expected if the timer is allowed to naturally roll over after calling TimerRoll. The difference will be MAX_TIME - the time when TimerRoll was last called. This could be fixed by adding a check for the timer rolling over naturally and setting rollover_time to TIME_MAX in timing.c. Note: This is handled by the task management system which typically will be the only user of Timing_Roll()
