i2c.h File Reference

#include "project_settings.h"
#include "hal_i2c.h"

Include dependency graph for i2c.h:

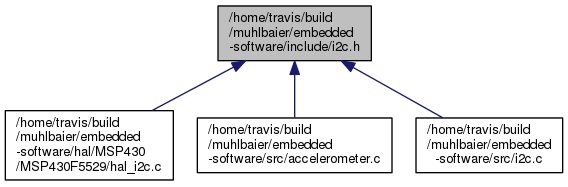

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	i2c_transaction

Macros
#define	I2C_MAX_TX_SIZE   4
#define	I2C_MAX_RX_SIZE   4
#define	I2C_MAX_TRANSACTIONS   4
#define	TRANSACTION_FAILED   1
#define	TRANSACTION_SUCCESSFUL   0

Typedefs
typedef struct i2c_transaction	i2c_transaction_t

Functions
void	I2C_Init (i2c_settings_t *i2c_settings)
void	I2C_Transact (i2c_transaction_t *transaction)
uint8_t	I2C_Tx_Handler (uint8_t channel)
void	I2C_Rx_Handler (uint8_t channel, uint8_t byte)
uint16_t	I2C_GetSlaveAddress (uint8_t channel)
uint8_t	I2C_GetTxByte (uint8_t channel)
uint8_t	I2C_GetTxSize (uint8_t channel)
uint8_t	I2C_GetRxSize (uint8_t channel)
uint8_t	I2C_GetStayActive (uint8_t channel)
void	I2C_TransactionSuccess (uint8_t channel)
void	I2C_TransactionFail (uint8_t channel)
void	hal_I2C_Init (i2c_settings_t *settings)
void	hal_I2C_Enable (uint8_t channel)
void	hal_I2C_Disable (uint8_t channel)
void	hal_I2C_SendStart (uint8_t channel)
void	hal_I2C_EnableInterrupts (uint8_t channel)
void	hal_I2C_DisableInterrupts (uint8_t channel)

Macro Definition Documentation

#define I2C_MAX_RX_SIZE   4

#define I2C_MAX_TRANSACTIONS   4

#define I2C_MAX_TX_SIZE   4

#define TRANSACTION_FAILED   1

#define TRANSACTION_SUCCESSFUL   0

Typedef Documentation

typedef struct i2c_transaction i2c_transaction_t

Function Documentation

void hal_I2C_Disable

(

uint8_t

channel

)

Here is the caller graph for this function:

void hal_I2C_DisableInterrupts

(

uint8_t

channel

)

void hal_I2C_Enable

(

uint8_t

channel

)

Here is the caller graph for this function:

void hal_I2C_EnableInterrupts

(

uint8_t

channel

)

Here is the caller graph for this function:

void hal_I2C_Init

(

i2c_settings_t *

settings

)

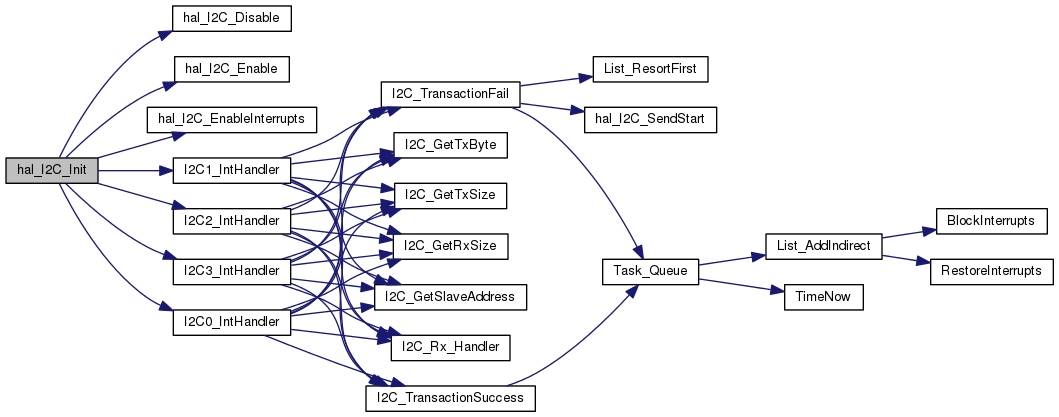

Here is the call graph for this function:

Here is the caller graph for this function:

void hal_I2C_SendStart

(

uint8_t

channel

)

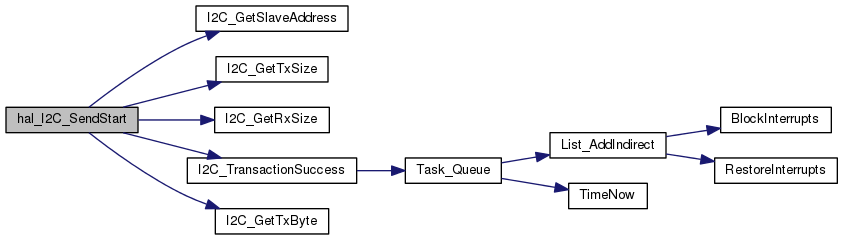

Here is the call graph for this function:

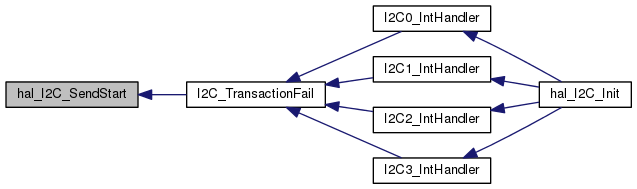

Here is the caller graph for this function:

uint8_t I2C_GetRxSize

(

uint8_t

channel

)

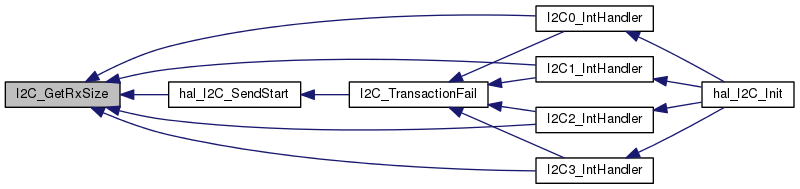

Here is the caller graph for this function:

uint16_t I2C_GetSlaveAddress

(

uint8_t

channel

)

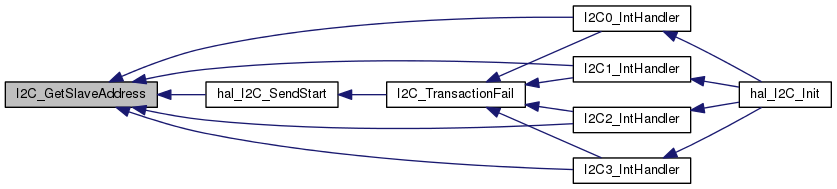

Here is the caller graph for this function:

uint8_t I2C_GetStayActive

(

uint8_t

channel

)

uint8_t I2C_GetTxByte

(

uint8_t

channel

)

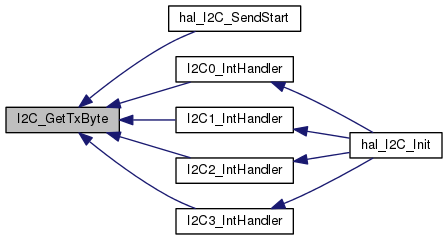

Here is the caller graph for this function:

uint8_t I2C_GetTxSize

(

uint8_t

channel

)

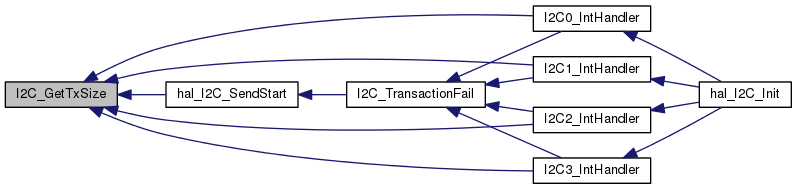

Here is the caller graph for this function:

void I2C_Init

(

i2c_settings_t *

i2c_settings

)

Here is the call graph for this function:

Here is the caller graph for this function:

void I2C_Rx_Handler	(	uint8_t	channel,
		uint8_t	byte
	)

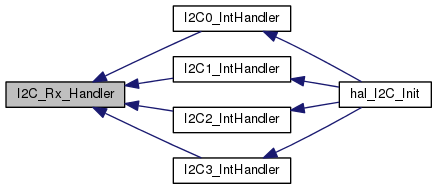

Here is the caller graph for this function:

void I2C_Transact

(

i2c_transaction_t *

transaction

)

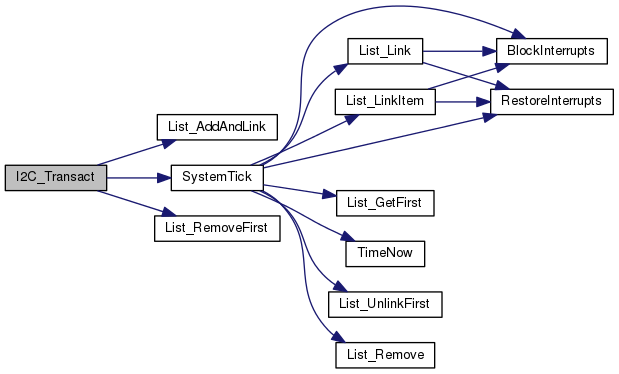

Here is the call graph for this function:

Here is the caller graph for this function:

void I2C_TransactionFail

(

uint8_t

channel

)

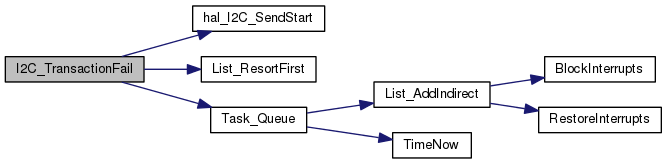

Here is the call graph for this function:

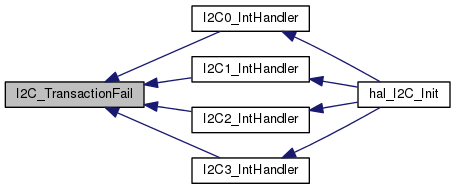

Here is the caller graph for this function:

void I2C_TransactionSuccess

(

uint8_t

channel

)

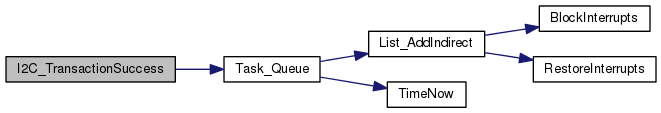

Here is the call graph for this function:

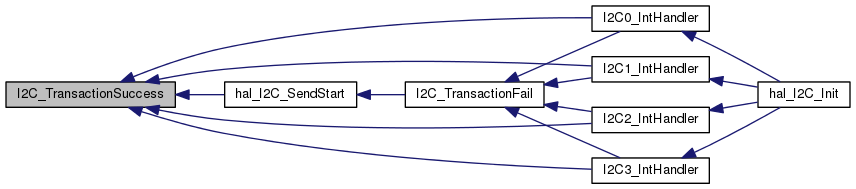

Here is the caller graph for this function:

uint8_t I2C_Tx_Handler

(

uint8_t

channel

)
