hal_pin_macros.h File Reference

#include "library.h"

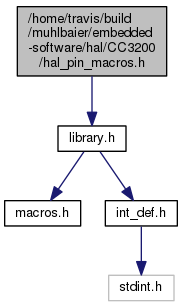

Include dependency graph for hal_pin_macros.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	GET_GPIO_PORT(x)   (GPIOA0_BASE + (0x1000 * (x/8)))
#define	GET_GPIO_PORT_PERIPHERAL(x)   (PRCM_GPIOA0 + (x/8))
#define	GET_GPIO_BIT(x)   (1 << (x % 8))
#define	GET_GPIO_PIN(x)   CAT3(GPIO, x, _PIN_NUM)
#define	GPIO_READ(x)   ((GPIOPinRead(GET_GPIO_PORT(x), GET_GPIO_BIT(x)) >> (x % 8)) & 0x01)
#define	GPIO0_UART0_RTS   PIN_MODE_3
#define	GPIO0_McAXR0   PIN_MODE_4
#define	GPIO0_McAXR1   PIN_MODE_6
#define	GPIO0_GT_CCP00   PIN_MODE_7
#define	GPIO0_GSPI_CS   PIN_MODE_9
#define	GPIO0_UART1_RTS   PIN_MODE_10
#define	GPIO0_UART0_CTS   PIN_MODE_12
#define	GPIO1_UART0_TX   PIN_MODE_3
#define	GPIO1_PIXCLK   PIN_MODE_4
#define	GPIO1_UART1_TX   PIN_MODE_6
#define	GPIO1_GT_CCP01   PIN_MODE_7
#define	GPIO2_UART0_RX   PIN_MODE_3
#define	GPIO2_UART1_RX   PIN_MODE_6
#define	GPIO2_GT_CCP02   PIN_MODE_7
#define	GPIO3_CAM_D3   PIN_MODE_4
#define	GPIO3_UART1_TX   PIN_MODE_6
#define	GPIO4_CAM_D2   PIN_MODE_4
#define	GPIO4_UART1_RX   PIN_MODE_6
#define	GPIO5_CAM_D1   PIN_MODE_4
#define	GPIO5_McAXR1   PIN_MODE_6
#define	GPIO5_GT_CCP05   PIN_MODE_7
#define	GPIO6_UART1_CTS   PIN_MODE_3
#define	GPIO6_CAM_D0   PIN_MODE_4
#define	GPIO6_UART0_RTS   PIN_MODE_5
#define	GPIO6_UART0_CTS   PIN_MODE_6
#define	GPIO6_GT_CCP06   PIN_MODE_7
#define	GPIO7_UART1_RTS   PIN_MODE_3
#define	GPIO7_UART0_RTS   PIN_MODE_10
#define	GPIO7_UART0_TX   PIN_MODE_11
#define	GPIO7_McACLKX   PIN_MODE_13
#define	GPIO8_SDCARD_IRQ   PIN_MODE_6
#define	GPIO8_McAFSX   PIN_MODE_7
#define	GPIO8_GT_CCP06   PIN_MODE_12
#define	GPIO9_GT_PWM05   PIN_MODE_3
#define	GPIO9_SDCARD_D0   PIN_MODE_6
#define	GPIO9_McAXR0   PIN_MODE_7
#define	GPIO9_GT_CCP00   PIN_MODE_12
#define	GPIO10_I2C_SCL   PIN_MODE_1
#define	GPIO10_GT_PWM06   PIN_MODE_3
#define	GPIO10_SDCARD_CLK   PIN_MODE_6
#define	GPIO10_UART1_TX   PIN_MODE_7
#define	GPIO10_GT_CCP01   PIN_MODE_12
#define	GPIO11_I2C_SDA   PIN_MODE_1
#define	GPIO11_GT_PWM07   PIN_MODE_3
#define	GPIO11_XVCLK   PIN_MODE_4
#define	GPIO11_SDCARD_CMD   PIN_MODE_6
#define	GPIO11_UART1_RX   PIN_MODE_7
#define	GPIO11_GT_CCP02   PIN_MODE_12
#define	GPIO11_McAFSX   PIN_MODE_13
#define	GPIO12_McACLK   PIN_MODE_3
#define	GPIO12_VSYNC   PIN_MODE_4
#define	GPIO12_I2C_SCL   PIN_MODE_5
#define	GPIO12_UART0_TX   PIN_MODE_7
#define	GPIO12_GT_CCP03   PIN_MODE_12
#define	GPIO13_HSYNC   PIN_MODE_4
#define	GPIO13_I2C_SDA   PIN_MODE_5
#define	GPIO13_UART0_RX   PIN_MODE_7
#define	GPIO13_GT_CCP04   PIN_MODE_12
#define	GPIO14_CAM_D4   PIN_MODE_4
#define	GPIO14_I2C_SCL   PIN_MODE_5
#define	GPIO14_GSPI_CLK   PIN_MODE_7
#define	GPIO14_GT_CCP05   PIN_MODE_12
#define	GPIO15_CAM_D5   PIN_MODE_4
#define	GPIO15_I2C_SCL   PIN_MODE_5
#define	GPIO15_GSPI_MIMO   PIN_MODE_7
#define	GPIO15_SDCARD_D0   PIN_MODE_8
#define	GPIO15_GT_CCP06   PIN_MODE_13
#define	GPIO16_CAM_D6   PIN_MODE_4
#define	GPIO16_UART1_TX   PIN_MODE_5
#define	GPIO16_GSPI_MOSI   PIN_MODE_7
#define	GPIO16_SDCARD_CLK   PIN_MODE_8
#define	GPIO16_GT_CCP07   PIN_MODE_13
#define	GPIO17_CAM_D7   PIN_MODE_4
#define	GPIO17_UART1_RX   PIN_MODE_5
#define	GPIO17_GSPI_CS   PIN_MODE_7
#define	GPIO17_SDCARD_CMD   PIN_MODE_8
#define	GPIO22_GTCCP04   PIN_MODE_5
#define	GPIO22_McAFSC   PIN_MODE_7
#define	GPIO0_PIN_NUM   PIN_50
#define	GPIO1_PIN_NUM   PIN_55
#define	GPIO2_PIN_NUM   PIN_57
#define	GPIO3_PIN_NUM   PIN_58
#define	GPIO4_PIN_NUM   PIN_59
#define	GPIO5_PIN_NUM   PIN_60
#define	GPIO6_PIN_NUM   PIN_61
#define	GPIO7_PIN_NUM   PIN_62
#define	GPIO8_PIN_NUM   PIN_63
#define	GPIO9_PIN_NUM   PIN_64
#define	GPIO10_PIN_NUM   PIN_01
#define	GPIO11_PIN_NUM   PIN_02
#define	GPIO12_PIN_NUM   PIN_03
#define	GPIO13_PIN_NUM   PIN_04
#define	GPIO14_PIN_NUM   PIN_05
#define	GPIO15_PIN_NUM   PIN_06
#define	GPIO16_PIN_NUM   PIN_07
#define	GPIO17_PIN_NUM   PIN_08
#define	GPIO22_PIN_NUM   PIN_15
#define	GPIO28_PIN_NUM   PIN_18
#define	GPIO30_PIN_NUM   PIN_53

Macro Definition Documentation

#define GET_GPIO_BIT

(

x

)

(1 << (x % 8))

#define GET_GPIO_PIN

(

x

)

CAT3(GPIO, x, _PIN_NUM)

#define GET_GPIO_PORT

(

x

)

(GPIOA0_BASE + (0x1000 * (x/8)))

These macros assume you are using the GPIO number of the pin as the input. Do not use the pin number. Also do not append 0 in front of single digit GPIO numbers.

    Ex. GPIO2 is PIN_57 so use GET_GPIO_PORT(2)

#define GET_GPIO_PORT_PERIPHERAL

(

x

)

(PRCM_GPIOA0 + (x/8))

#define GPIO0_GSPI_CS   PIN_MODE_9

#define GPIO0_GT_CCP00   PIN_MODE_7

#define GPIO0_McAXR0   PIN_MODE_4

#define GPIO0_McAXR1   PIN_MODE_6

#define GPIO0_PIN_NUM   PIN_50

#define GPIO0_UART0_CTS   PIN_MODE_12

#define GPIO0_UART0_RTS   PIN_MODE_3

#define GPIO0_UART1_RTS   PIN_MODE_10

#define GPIO10_GT_CCP01   PIN_MODE_12

#define GPIO10_GT_PWM06   PIN_MODE_3

#define GPIO10_I2C_SCL   PIN_MODE_1

#define GPIO10_PIN_NUM   PIN_01

#define GPIO10_SDCARD_CLK   PIN_MODE_6

#define GPIO10_UART1_TX   PIN_MODE_7

#define GPIO11_GT_CCP02   PIN_MODE_12

#define GPIO11_GT_PWM07   PIN_MODE_3

#define GPIO11_I2C_SDA   PIN_MODE_1

#define GPIO11_McAFSX   PIN_MODE_13

#define GPIO11_PIN_NUM   PIN_02

#define GPIO11_SDCARD_CMD   PIN_MODE_6

#define GPIO11_UART1_RX   PIN_MODE_7

#define GPIO11_XVCLK   PIN_MODE_4

#define GPIO12_GT_CCP03   PIN_MODE_12

#define GPIO12_I2C_SCL   PIN_MODE_5

#define GPIO12_McACLK   PIN_MODE_3

#define GPIO12_PIN_NUM   PIN_03

#define GPIO12_UART0_TX   PIN_MODE_7

#define GPIO12_VSYNC   PIN_MODE_4

#define GPIO13_GT_CCP04   PIN_MODE_12

#define GPIO13_HSYNC   PIN_MODE_4

#define GPIO13_I2C_SDA   PIN_MODE_5

#define GPIO13_PIN_NUM   PIN_04

#define GPIO13_UART0_RX   PIN_MODE_7

#define GPIO14_CAM_D4   PIN_MODE_4

#define GPIO14_GSPI_CLK   PIN_MODE_7

#define GPIO14_GT_CCP05   PIN_MODE_12

#define GPIO14_I2C_SCL   PIN_MODE_5

#define GPIO14_PIN_NUM   PIN_05

#define GPIO15_CAM_D5   PIN_MODE_4

#define GPIO15_GSPI_MIMO   PIN_MODE_7

#define GPIO15_GT_CCP06   PIN_MODE_13

#define GPIO15_I2C_SCL   PIN_MODE_5

#define GPIO15_PIN_NUM   PIN_06

#define GPIO15_SDCARD_D0   PIN_MODE_8

#define GPIO16_CAM_D6   PIN_MODE_4

#define GPIO16_GSPI_MOSI   PIN_MODE_7

#define GPIO16_GT_CCP07   PIN_MODE_13

#define GPIO16_PIN_NUM   PIN_07

#define GPIO16_SDCARD_CLK   PIN_MODE_8

#define GPIO16_UART1_TX   PIN_MODE_5

#define GPIO17_CAM_D7   PIN_MODE_4

#define GPIO17_GSPI_CS   PIN_MODE_7

#define GPIO17_PIN_NUM   PIN_08

#define GPIO17_SDCARD_CMD   PIN_MODE_8

#define GPIO17_UART1_RX   PIN_MODE_5

#define GPIO1_GT_CCP01   PIN_MODE_7

#define GPIO1_PIN_NUM   PIN_55

#define GPIO1_PIXCLK   PIN_MODE_4

#define GPIO1_UART0_TX   PIN_MODE_3

#define GPIO1_UART1_TX   PIN_MODE_6

#define GPIO22_GTCCP04   PIN_MODE_5

#define GPIO22_McAFSC   PIN_MODE_7

#define GPIO22_PIN_NUM   PIN_15

#define GPIO28_PIN_NUM   PIN_18

#define GPIO2_GT_CCP02   PIN_MODE_7

#define GPIO2_PIN_NUM   PIN_57

#define GPIO2_UART0_RX   PIN_MODE_3

#define GPIO2_UART1_RX   PIN_MODE_6

#define GPIO30_PIN_NUM   PIN_53

#define GPIO3_CAM_D3   PIN_MODE_4

#define GPIO3_PIN_NUM   PIN_58

#define GPIO3_UART1_TX   PIN_MODE_6

#define GPIO4_CAM_D2   PIN_MODE_4

#define GPIO4_PIN_NUM   PIN_59

#define GPIO4_UART1_RX   PIN_MODE_6

#define GPIO5_CAM_D1   PIN_MODE_4

#define GPIO5_GT_CCP05   PIN_MODE_7

#define GPIO5_McAXR1   PIN_MODE_6

#define GPIO5_PIN_NUM   PIN_60

#define GPIO6_CAM_D0   PIN_MODE_4

#define GPIO6_GT_CCP06   PIN_MODE_7

#define GPIO6_PIN_NUM   PIN_61

#define GPIO6_UART0_CTS   PIN_MODE_6

#define GPIO6_UART0_RTS   PIN_MODE_5

#define GPIO6_UART1_CTS   PIN_MODE_3

#define GPIO7_McACLKX   PIN_MODE_13

#define GPIO7_PIN_NUM   PIN_62

#define GPIO7_UART0_RTS   PIN_MODE_10

#define GPIO7_UART0_TX   PIN_MODE_11

#define GPIO7_UART1_RTS   PIN_MODE_3

#define GPIO8_GT_CCP06   PIN_MODE_12

#define GPIO8_McAFSX   PIN_MODE_7

#define GPIO8_PIN_NUM   PIN_63

#define GPIO8_SDCARD_IRQ   PIN_MODE_6

#define GPIO9_GT_CCP00   PIN_MODE_12

#define GPIO9_GT_PWM05   PIN_MODE_3

#define GPIO9_McAXR0   PIN_MODE_7

#define GPIO9_PIN_NUM   PIN_64

#define GPIO9_SDCARD_D0   PIN_MODE_6

#define GPIO_READ

(

x

)

((GPIOPinRead(GET_GPIO_PORT(x), GET_GPIO_BIT(x)) >> (x % 8)) & 0x01)
