SPI Hardware Abstraction Layer for PIC32MX695F512H

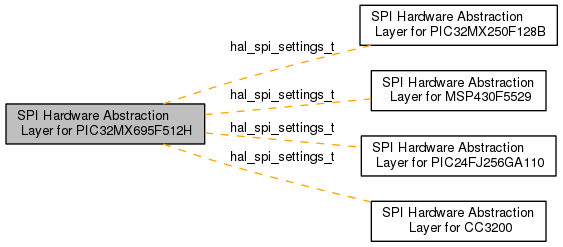

Collaboration diagram for SPI Hardware Abstraction Layer for PIC32MX695F512H:

Data Structures
struct	hal_spi_settings_t
	spi settings structure More...

Macros
#define	SPI_1   0
	index for SPI module 2 More...
#define	SPI_2   1
	index for SPI module 2 More...
#define	SPI_2   1
	index for SPI module 2 More...
#define	SPI_3   2
	index for SPI module 3 More...
#define	SPI_4   3
	index for SPI module 4 More...

Detailed Description

Author

Michael Muhlbaier

SPI channels 2, 3, 4, available and supported.

Warning

Only 8-bit mode supported

Macro Definition Documentation

#define SPI_1   0

index for SPI module 2

#define SPI_2   1

index for SPI module 2

#define SPI_2   1

index for SPI module 2

#define SPI_3   2

index for SPI module 3

#define SPI_4   3

index for SPI module 4
