Hal Seven Seg Module

The Hal Seven Seg Module enables use of the Seven_Seg module with the MSP430F5529. More...

Functions
void	hal_seven_seg_Init (void)
	Initialize the Hal Seven Seg Module. More...
void	hal_Display (uint8_t seg0, uint8_t seg1, uint8_t seg2, uint8_t seg3, uint8_t dec)
	Displays parameters on 4x7 seg display. More...

Detailed Description

The Hal Seven Seg Module enables use of the Seven_Seg module with the MSP430F5529.

What Module Does: Abstracts Seven_Seg functions for use on appropriate pin-out

Author

: Michael Sorce

: Alex Marino

: Michael Maloney

: David Gaffney

Version

0.0

Function Documentation

void hal_Display	(	uint8_t	seg0,
		uint8_t	seg1,
		uint8_t	seg2,
		uint8_t	seg3,
		uint8_t	dec
	)

Displays parameters on 4x7 seg display.

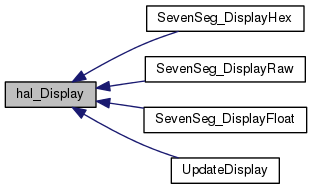

Here is the caller graph for this function:

void hal_seven_seg_Init

(

void

)

Initialize the Hal Seven Seg Module.

Initializes the pin-out for the seven seg module

Here is the caller graph for this function:
