adc.h File Reference

#include <stdint.h>
#include "task.h"
#include "hal_general.h"

Include dependency graph for adc.h:

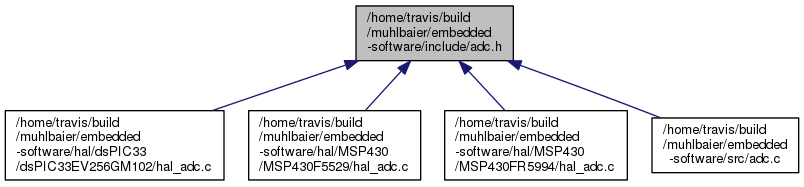

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ADC_MAX_CHANNELS   8

Typedefs
typedef void(*	callback_input_t )(uint16_t, void *)
	helpful typedef for adc callback with input More...

Functions
void	ADC_Init (void)
	Initialize the ADC module. More...
void	ADC_AddChannel (uint8_t channel, uint16_t period, void(*callback)(uint16_t, void *), void *ptr)
	add a channel to the list of channels to measure, a period at which to measure it, and a callback More...
void	ADC_ProcessMeasurementFromISR (uint16_t value)
void	hal_ADC_Init (void)
	hardware abstaction layer ADC initialization More...
void	hal_ADC_StartChannel (uint8_t channel)
	hardware abstaction layer start ADC measurement for a channel More...
